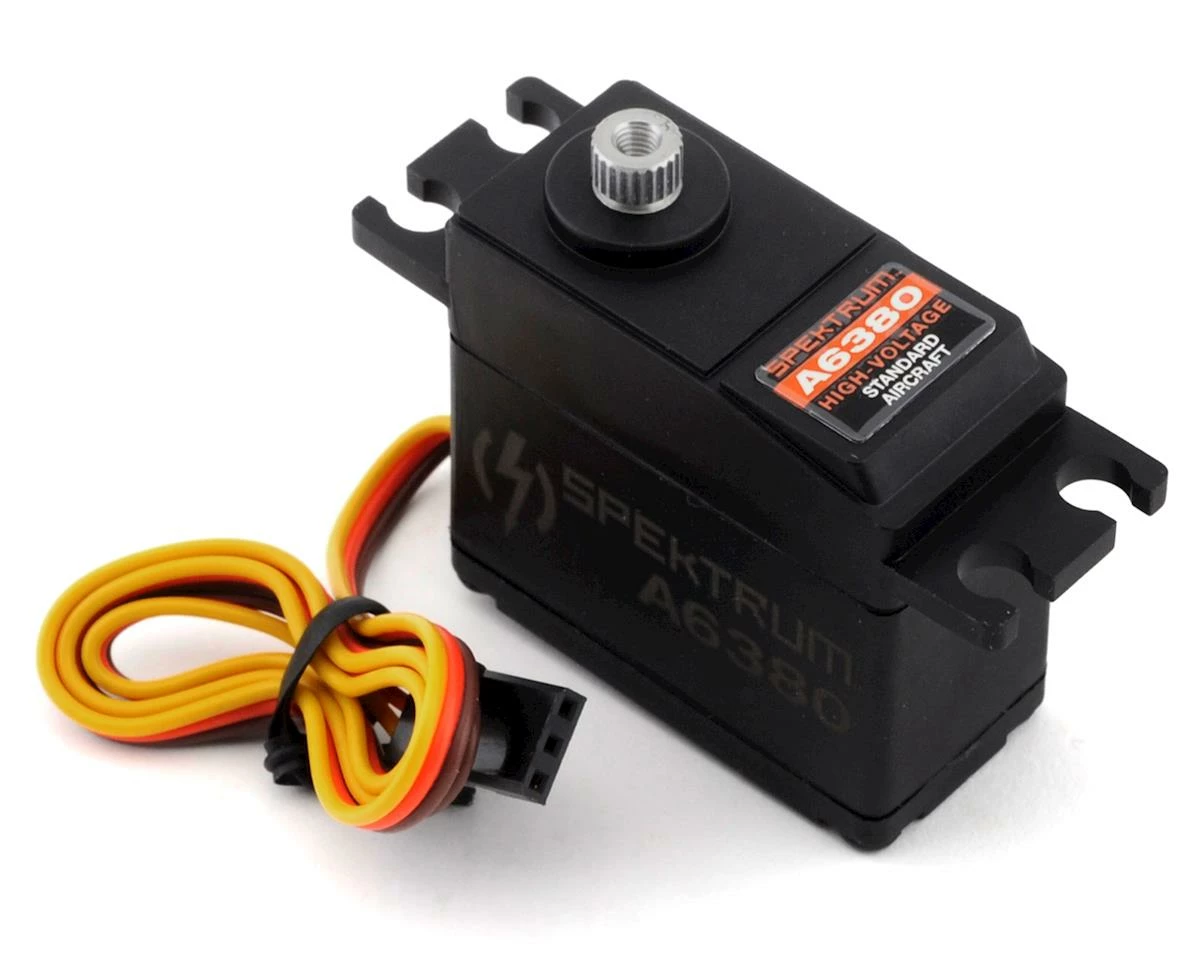

Spektrum RC A6380 High Torque Servo (High Voltage)

The Spektrum A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.

Specifications:
Size Category: Standard
Type: Digital
Application: Aircraft
Torque: 102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V
Speed: 0.17 sec/60° @ 6.0V, 0.13 sec/60° @ 8.4V
Dimensions (WxLxH): 38.6 x 18.8 x 37mm (1.52 x 0.74 x 1.47 in)
Weight: 1.5 oz (42.5 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Voltage: 6.0–8.4V

This product was added to our catalog on December 9, 2020
