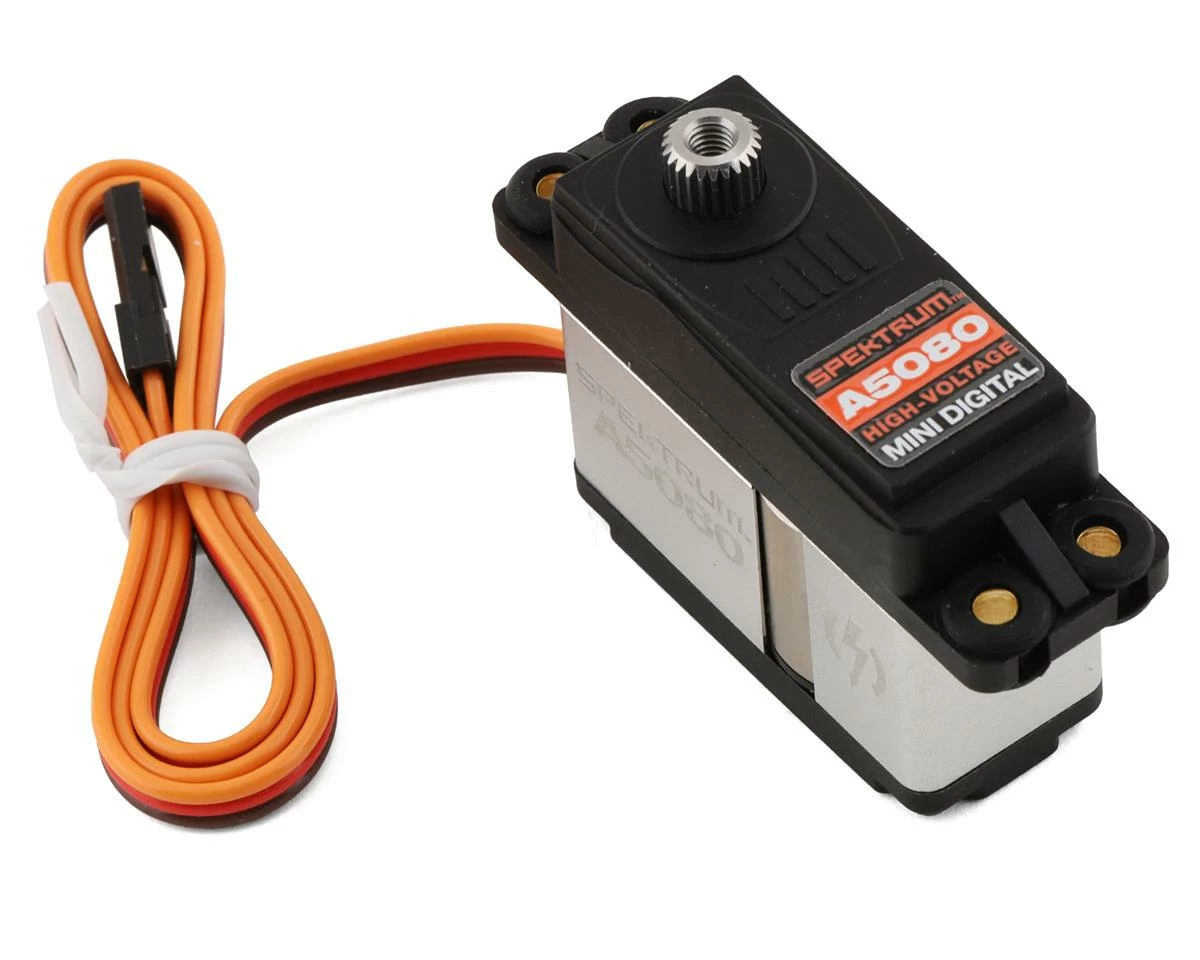

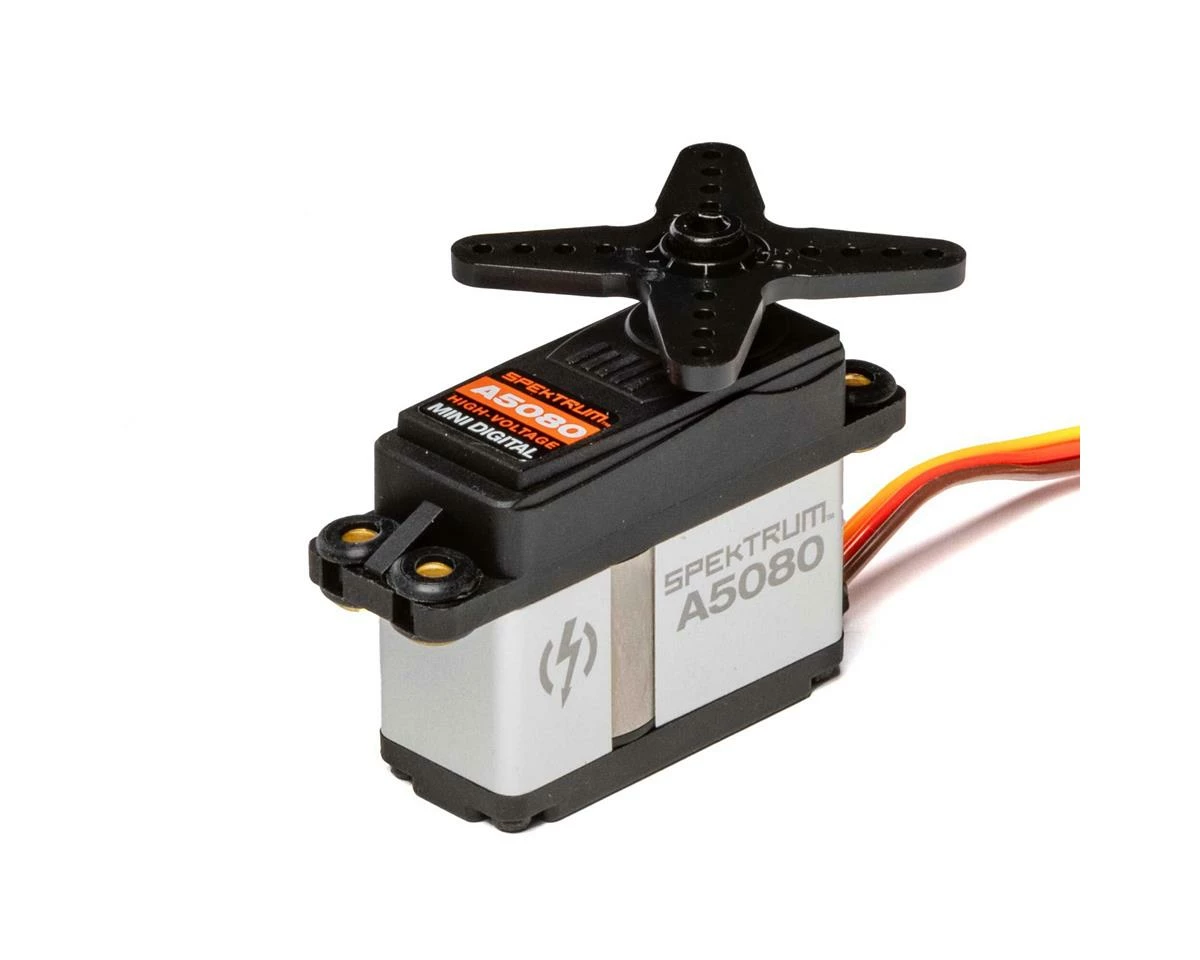

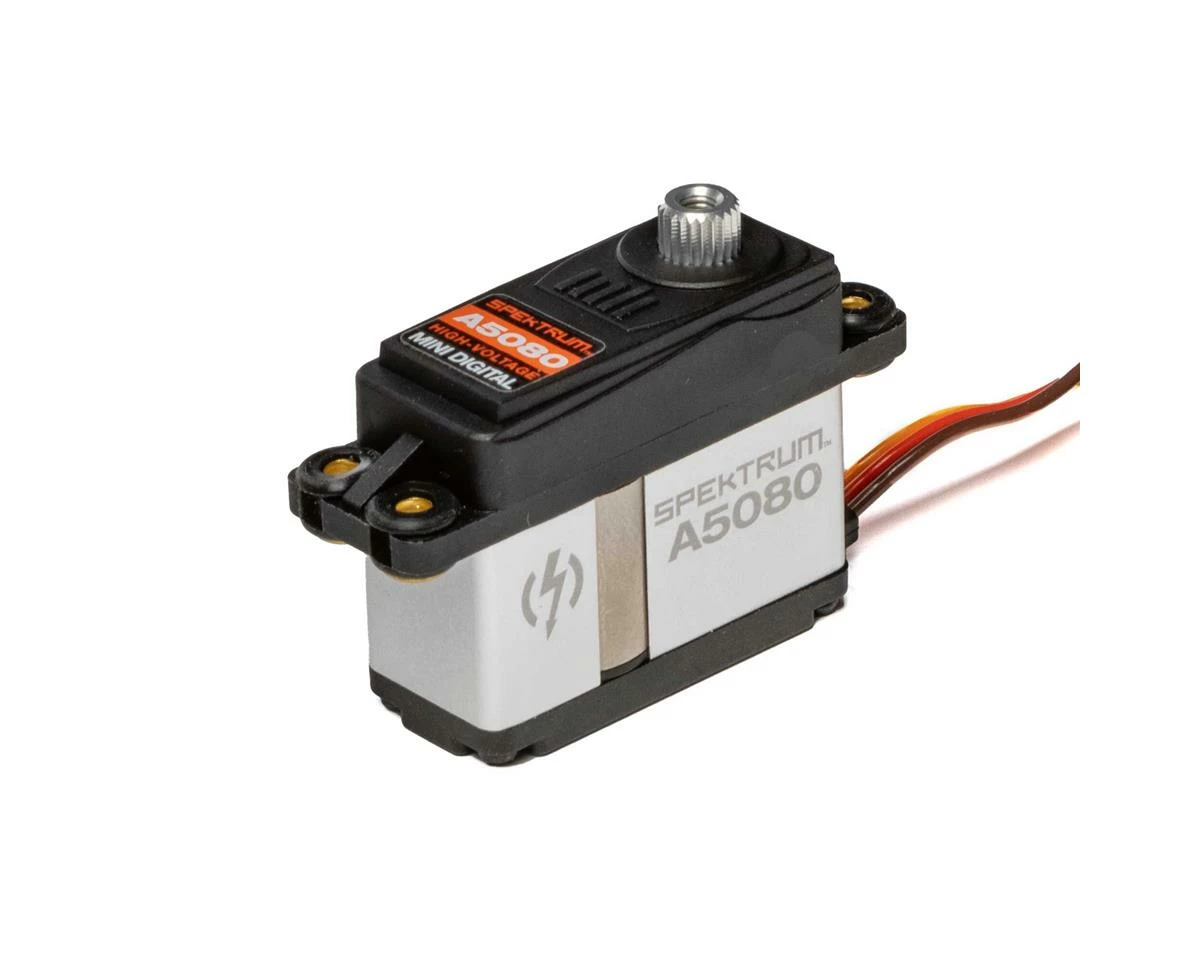

Spektrum RC A5080 MT/HS Metal Gear Mini Digital Servo (High Voltage)
Original price was: $59.99.$41.99Current price is: $41.99.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.
The Spektrum RC A5080 MT/HS Metal Gear Mini Digital Servo is a great option for high performance smaller sport planes (25-32 size). High voltage capable, this servo can produce 130oz of toque at 0.094sec/60° with 8.4V input. A low wear metal gear drive train is supported by a single ball bearing for smooth operation. Completing the build is a center aluminum band for added reliability and durability. Take to the skies with the Spektrum RC A5080 servo.
Features:
- High Voltage (HV) capable (4.8 8.4v input range)
- Mini size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
Specifications:
- Input Voltage: 4.8V-8.4V
- Overload Protection: No
- Motor Type: Coreless Brushed
- Product Weight: 1.2oz (34g)
- Spline Count: 23 – Tooth
- Deadband: <1us
- Servo Speed:
- 6.0V: 0.14 sec/60 deg
- 7.4V: 0.11 sec/60 deg
- 8.4V: 0.094 sec/60 deg
- Torque:
- 6.0V: 110 oz-in (7.92kg-cm)
- 7.4V: 118 oz-in (8.5kg-cm)
- 8.4V: 130 oz-in (9.4kg-cm)
- Bearing: Single BB

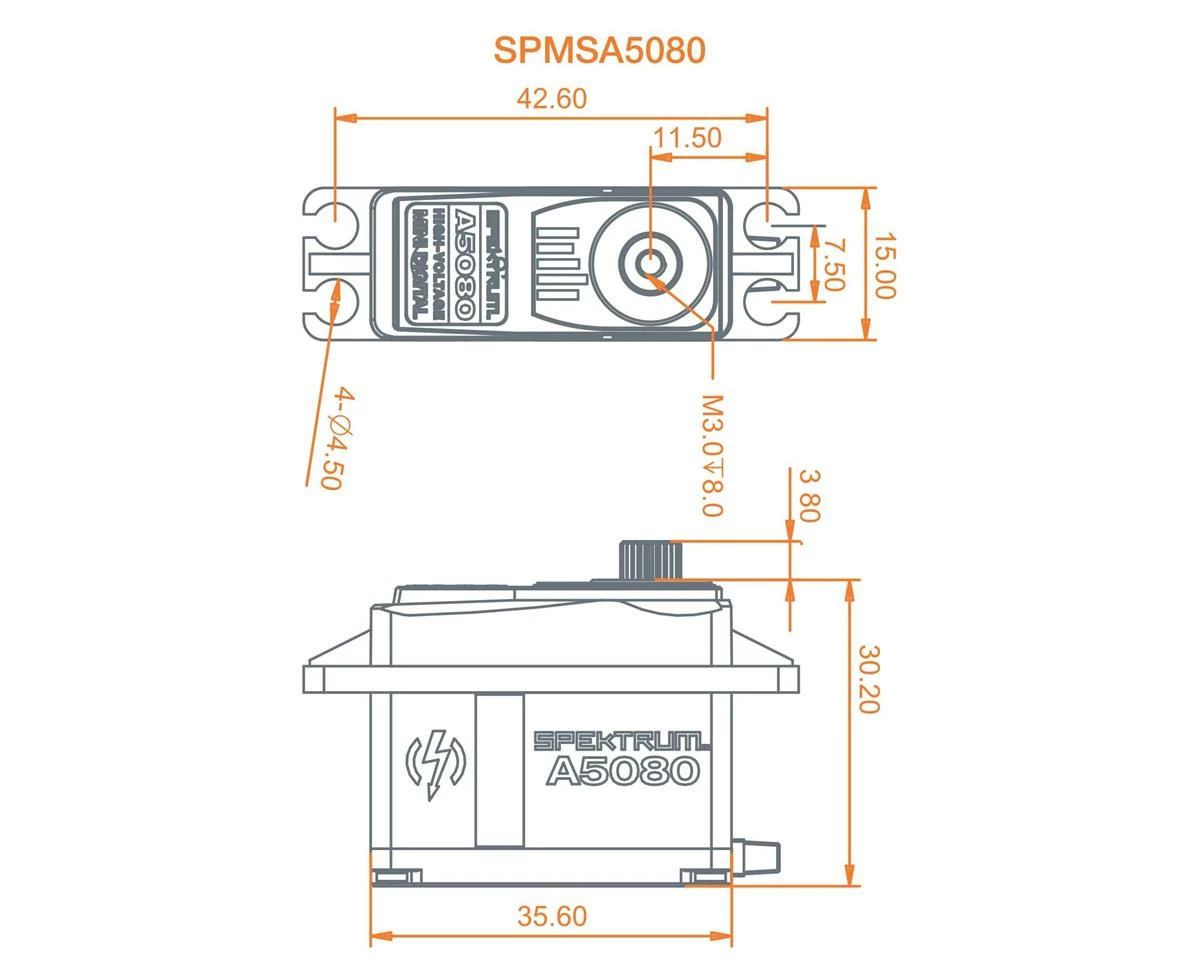

- Length: 1.4″ (35.56 mm)
- Width: 0.59″ (14.99 mm)
- Height: 1.18″ (29.97 mm)
- Programmable: No
- Servo Type: Digital
- Gear Type: Metal
Includes:

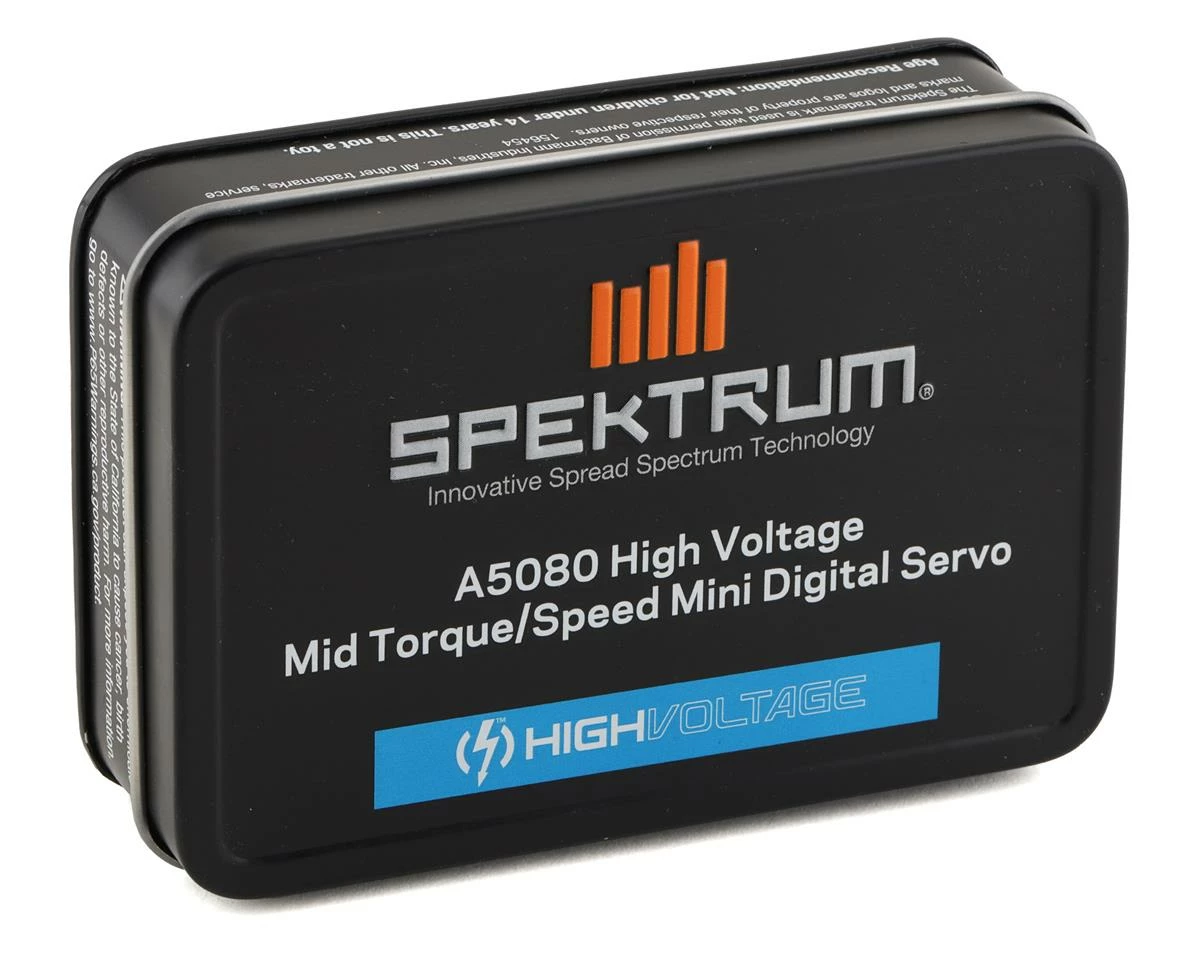

- (1) A5080 Mini Digital Servo
- (4) Pre-installed Mounting Grommets and Eyelets With Hardware

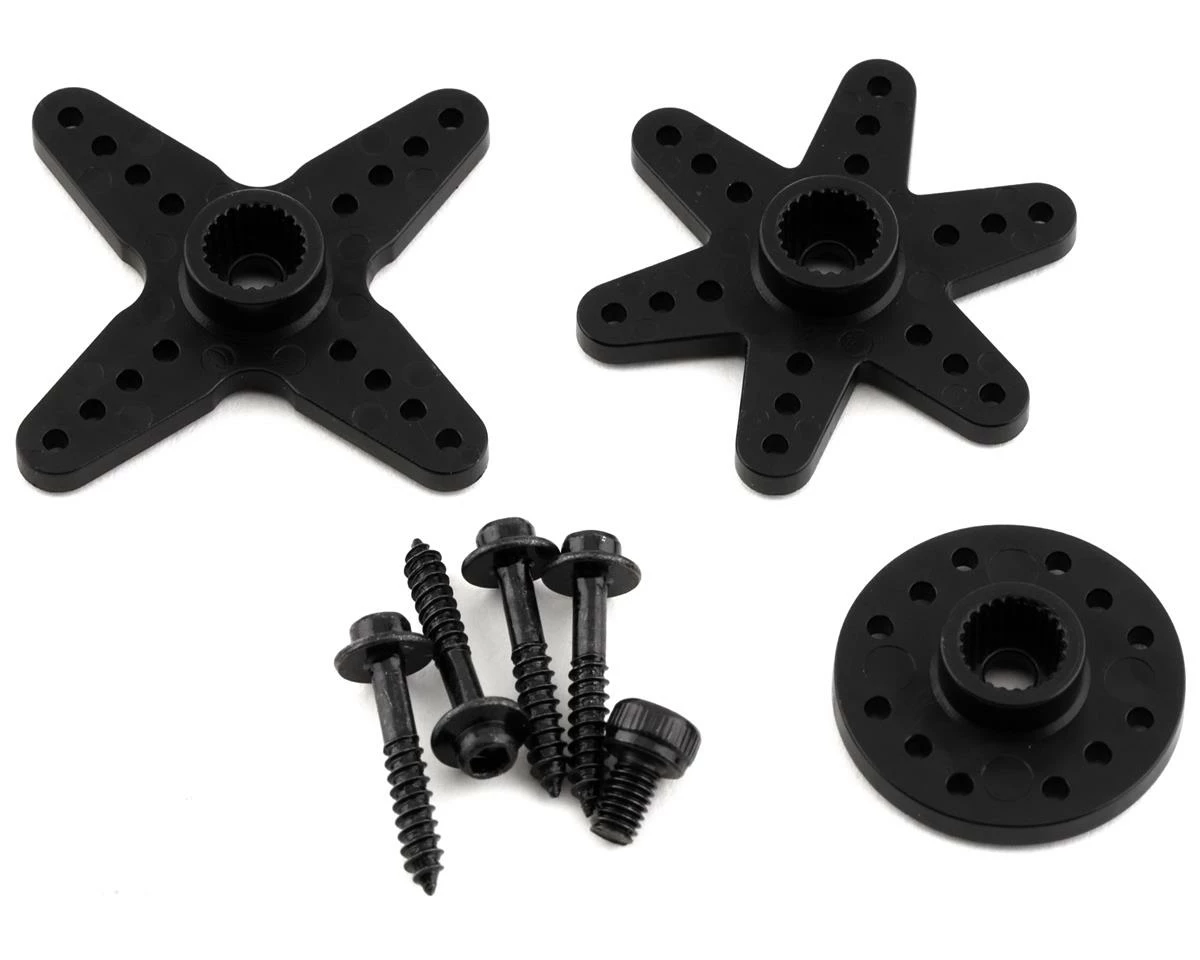

- (3) Plastic Servo Arms
- (1) Screw
