Spektrum RC A4040 MT/HS Micro Metal Gear Servo (High Voltage)
Original price was: $54.99.$38.49Current price is: $38.49.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.

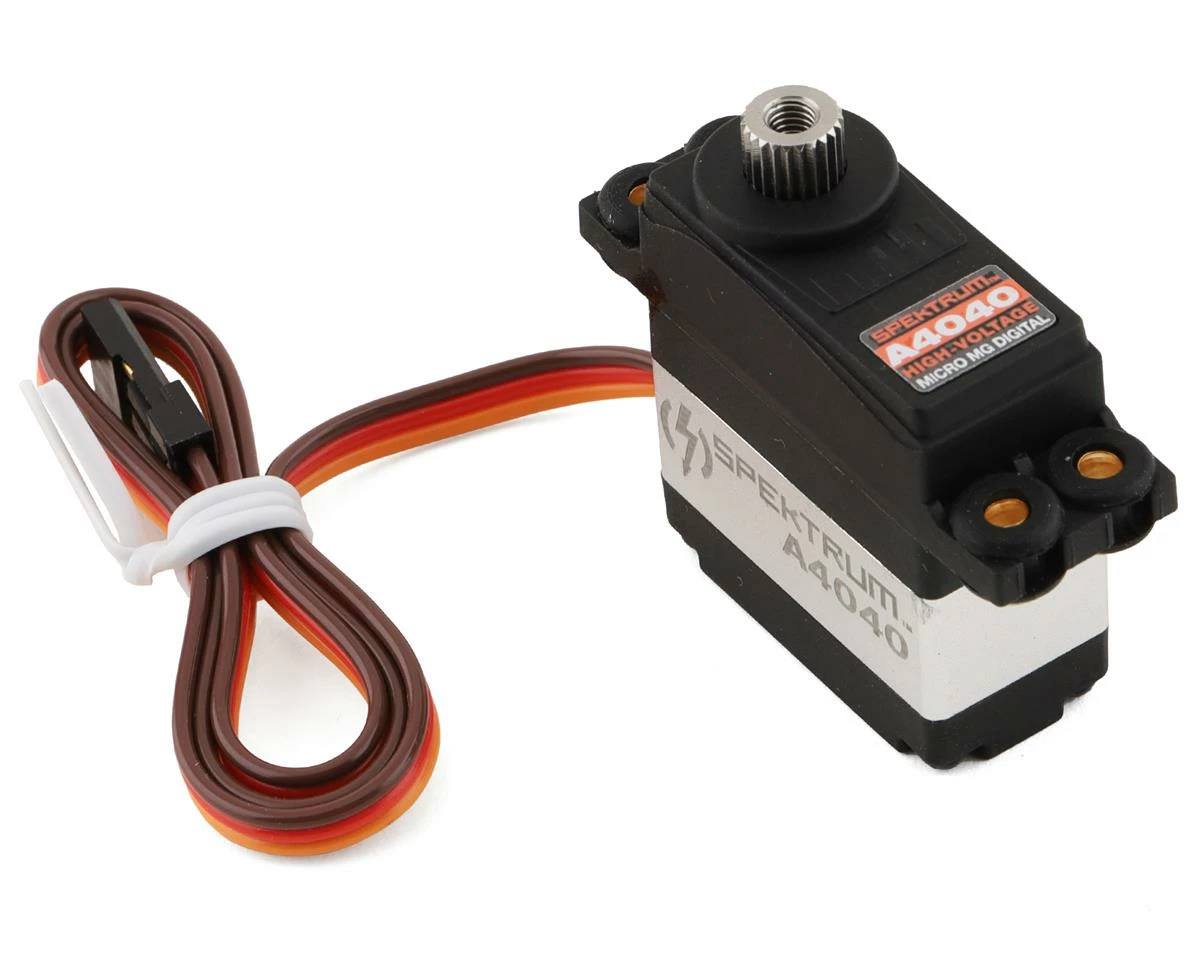

The Spektrum RC A4040 MT/HS Micro Metal Gear Servo is a great option for high performance smaller sport planes (15-25 size). High voltage capable, this servo can produce 96oz of toque at 0.094sec/60° with 8.4V input. A low wear metal gear drive train is supported by a single ball bearing for smooth operation. Completing the build is a center aluminum band for added reliability and durability. Take to the skies with the Spektrum RC A4040 servo.
Features:
- High Voltage (HV) capable (4.8-8.4v input range)
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
Specifications:
- Input Voltage: 4.8V-8.4V
- Overload Protection: No
- Motor Type: Coreless Brushed
- Product Weight: 1.2oz (34g)
- Spline Count: 23 – Tooth
- Deadband: <1us
- Servo Speed:
- 6.0V: 0.14 sec/60 deg
- 7.4V: 0.11 sec/60 deg
- 8.4V: 0.094 sec/60 deg
- Torque:
- 6.0V: 84 oz-in (6.05kg-cm)
- 7.4V: 91 oz-in (6.55kg-cm)
- 8.4V: 96 oz-in (7.00kg-cm)
- Bearing: Single BB

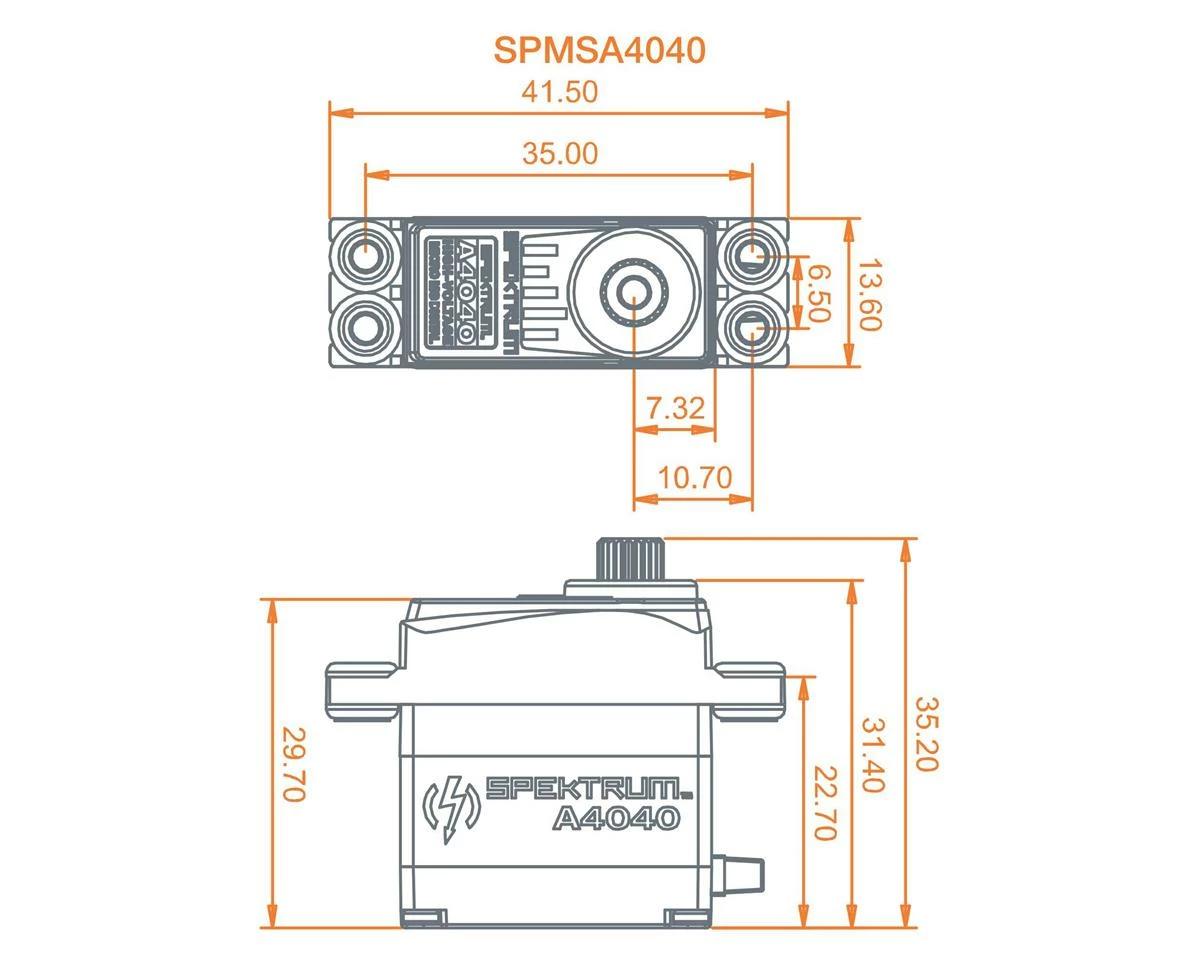

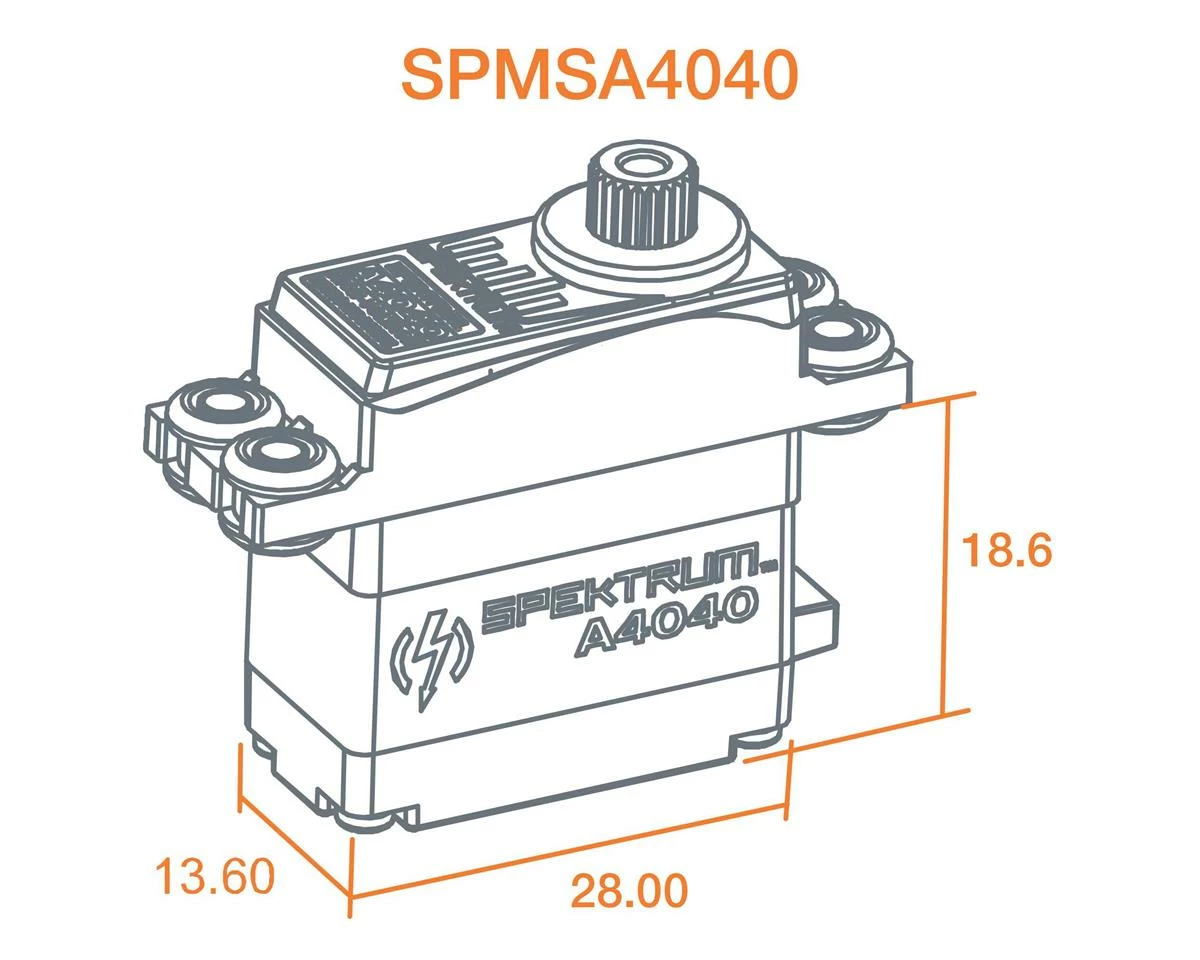

- Length: 1.1″ (28 mm)
- Width: 0.54″ (13.7 mm)
- Height: 1.23″ (31.24 mm)
- Programmable: No
- Servo Type: Digital
- Gear Type: Metal

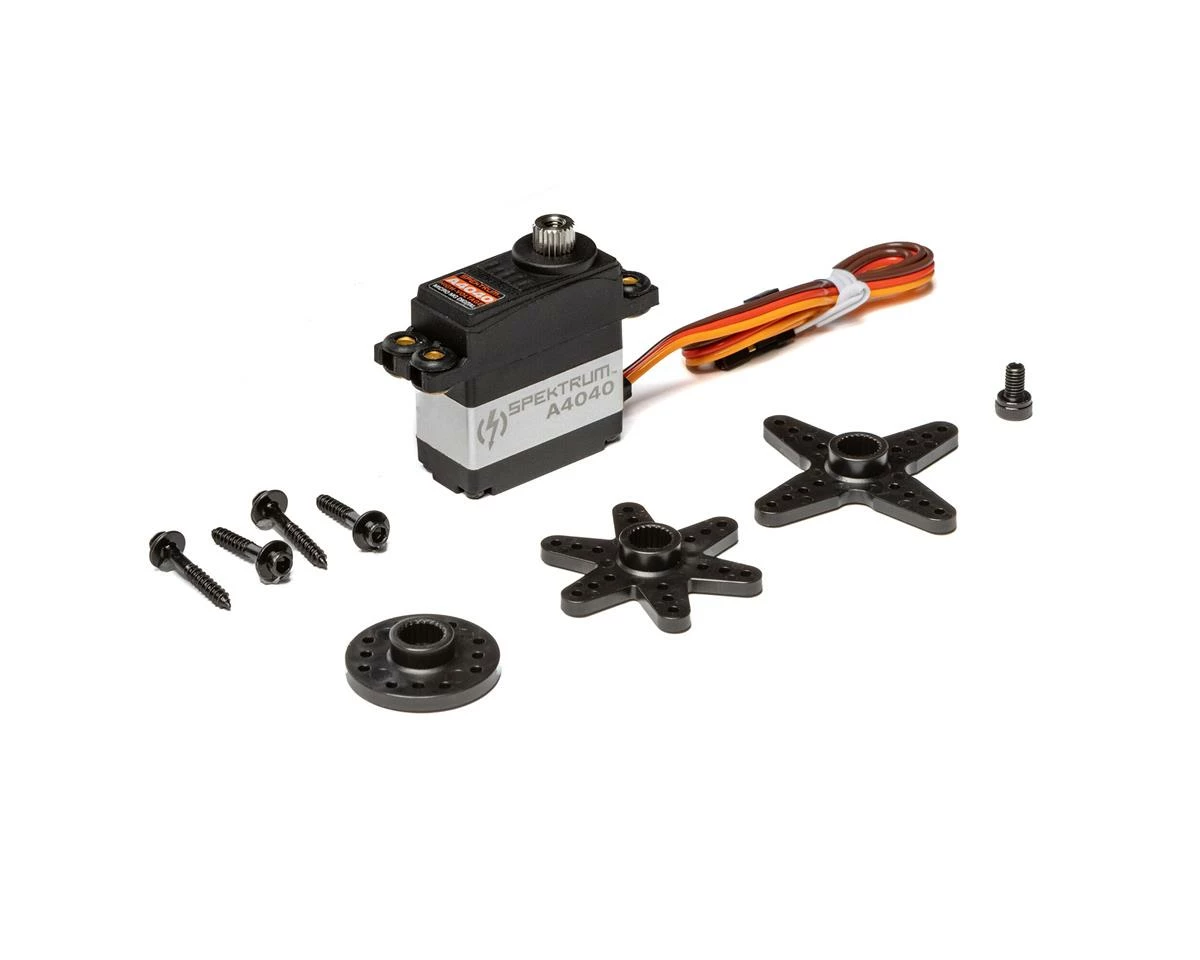

Includes:
- (1) A4040 Micro Digital Servo
- (4) Pre-installed Mounting Grommets and Eyelets With Hardware

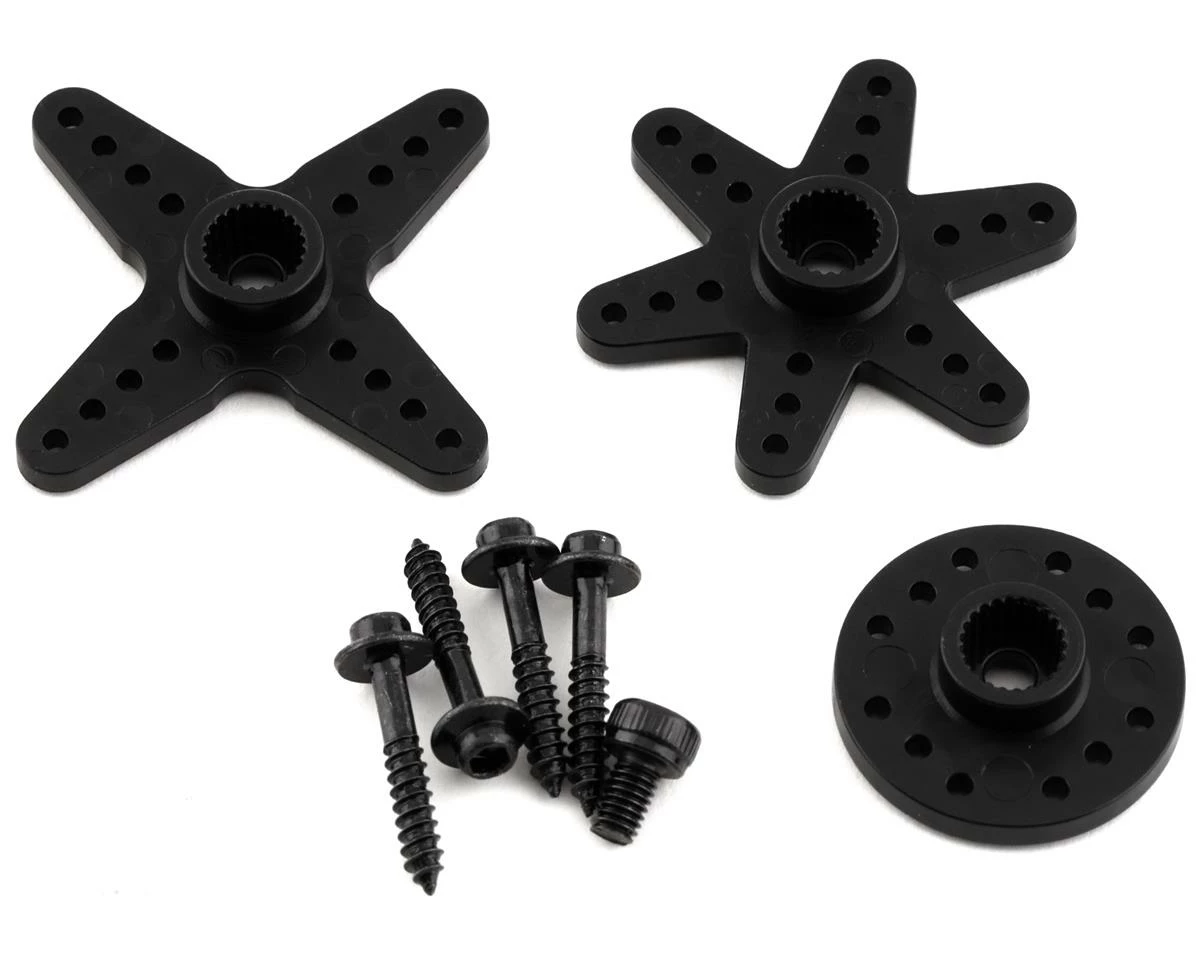

- (3) Plastic Servo Arms
- (1) Screw
This product is expected to become available for purchase on Saturday, March 4, 2023
