Spektrum RC 6020 High Torque Mid Speed Digital Plastic Servo

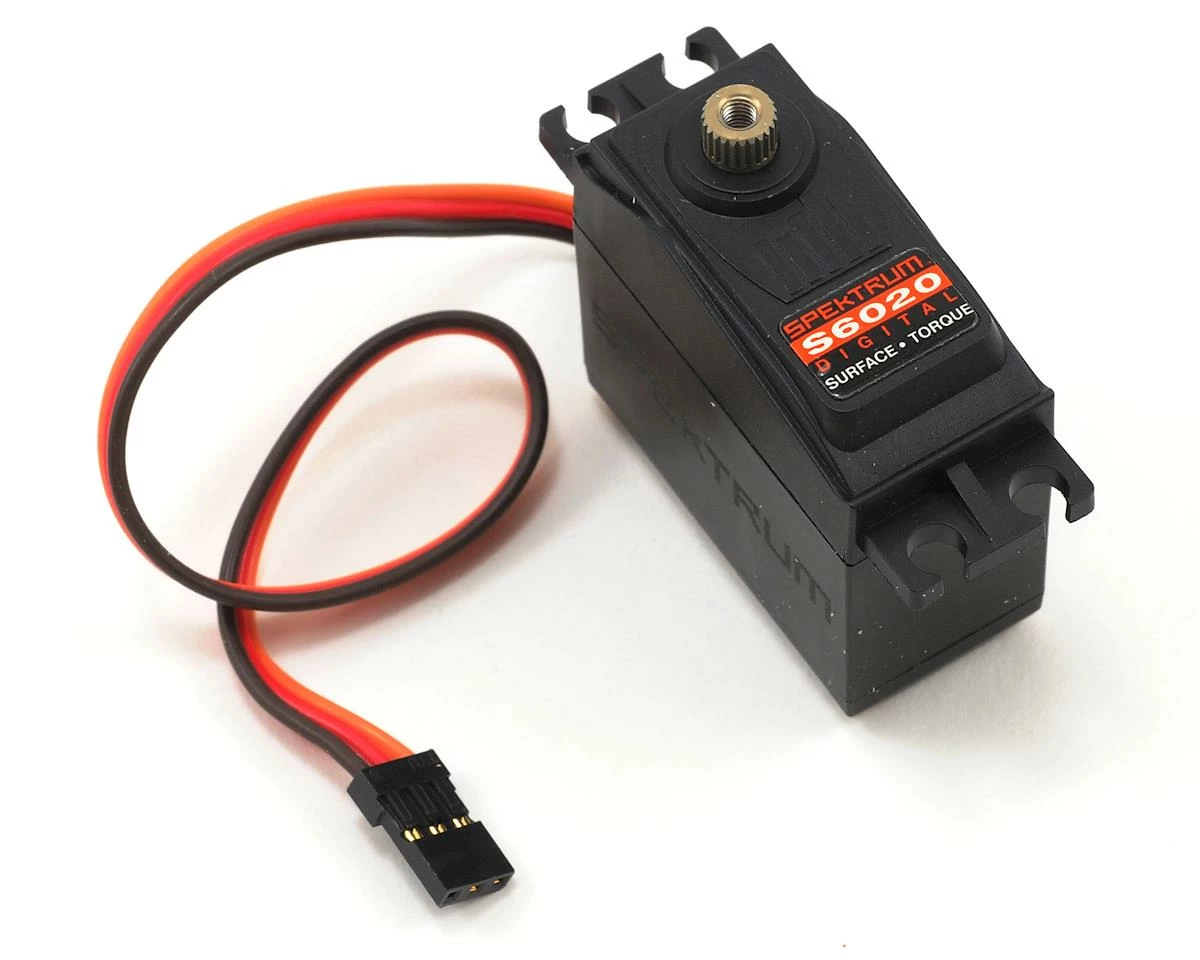

The heavy-duty, metal-gear S6020 servo puts out an impressive 146 oz-in of torque making it ideal for 1/10-scale trucks and cars. And it delivers this torque with silky smooth precision thanks to its dual ball-bearing output shaft.

Key Features:

• 146 oz-in torque at 6V affords impressive performance in the toughest applications
• Precise digital control
• Dual ball bearings provide less resistance for higher performance and longer life
• Heavy-duty metal gear train

Specifications:

• Size Category: Standard
• Type: Digital
• Application: 1/10- and 1/8-scale vehicles
• Torque: 100 oz-in (7.2 kg-cm) @ 4.8V; 146 oz-in (10.5 kg-cm) @ 6.0V
• Speed: 0.23 sec/60° @ 4.8V; 0.19 sec/60° @ 6.0V
• Length: 1.6 in (41mm)
• Width: 0.8 in (20mm)
• Height: 1.5 in (39mm)
• Weight: 1.7 oz (49.0 g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Brushed
• Connector Type: Z-connector
• Gear Type: Metal
• Gear Material: Metal with one (1) plastic
• Voltage: 4.8 or 6.0V (4- or 5-cell)
