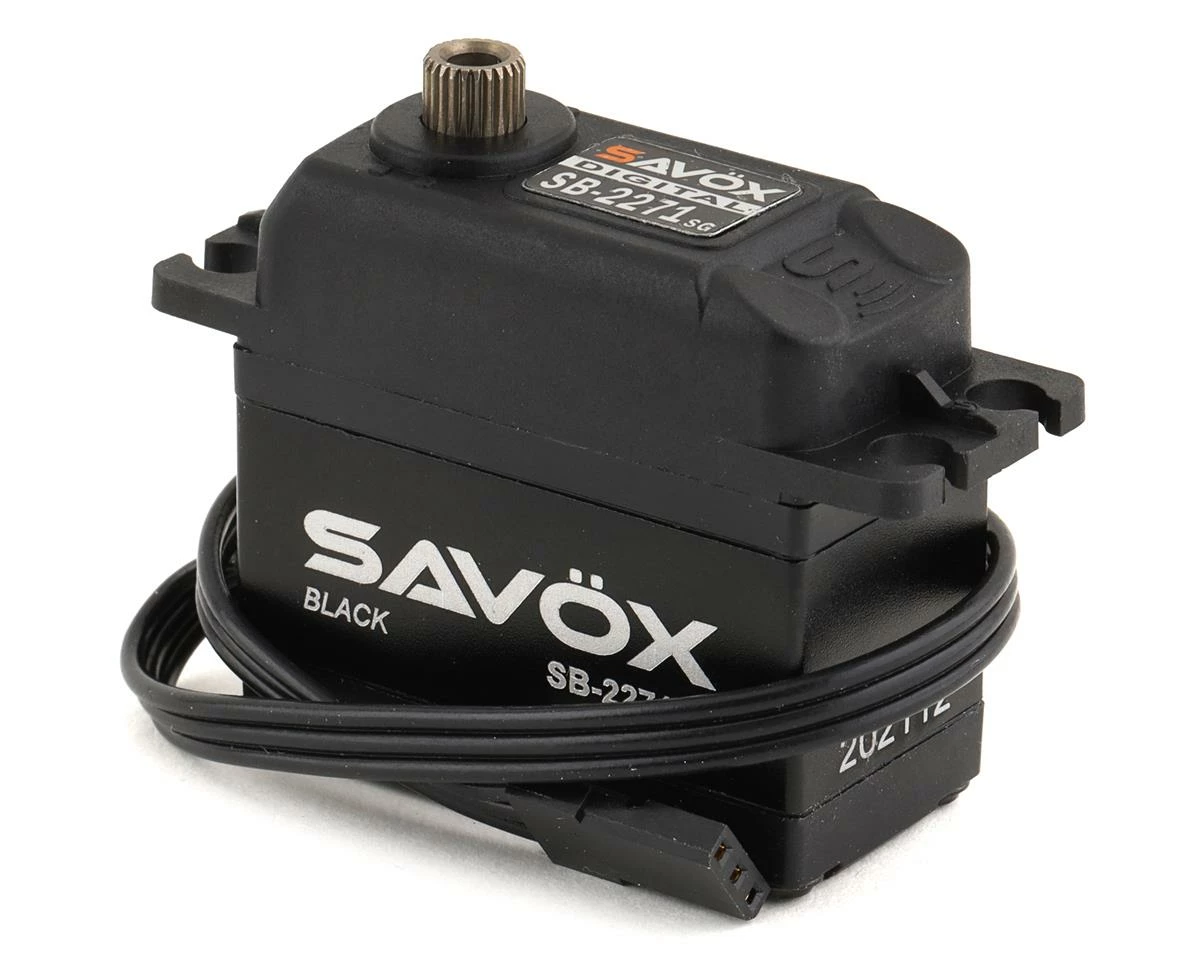

Savox SB-2271SG “High Speed” Black Edition Brushless Steel Gear Digital Servo (High Voltage)
Original price was: $112.99.$79.09Current price is: $79.09.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.
The Savox SB-2271SG “High Speed” Black Edition Brushless Steel Gear Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. This servo is a great option for 1/10 off road, and 450 helicopter applications.Â
Features:
- Unique steel gear train
- Capable of HV operation
- Brushless motor for smooth operation and efficiency
- Ideal for 1/10 buggies and trucks, and some heli applications
Specifications:
- Torque:Â
- @ 6v: 15.0kg/208.3oz-in
- @ 7.4v: 20.0kg/277.7oz-in
- Speed:
- @ 6v: 0.085 sec/60 deg
- @ 7.4v: 0.065 sec/60 deg
- Dimensions: 40.3×20.2×38.7mm (LxWxH)
- Weight: 69.0g
- Operating Temperature: 14° – 122°F (-10° – 50°C)
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 ? 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 ? 2200 µ second
- Maximum Travel: Appx 130° (900 ? 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
This product was added to our catalog on March 9, 2022
