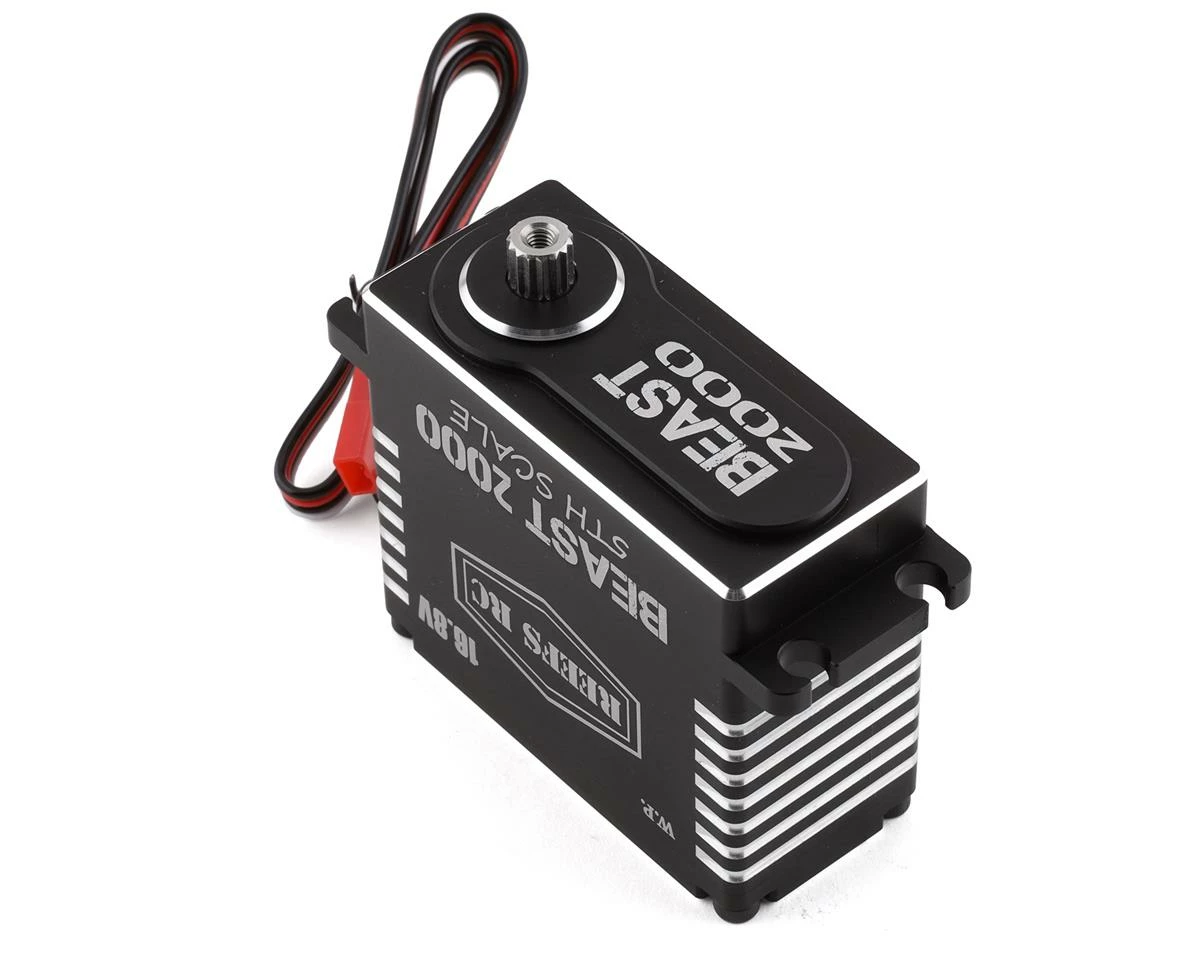

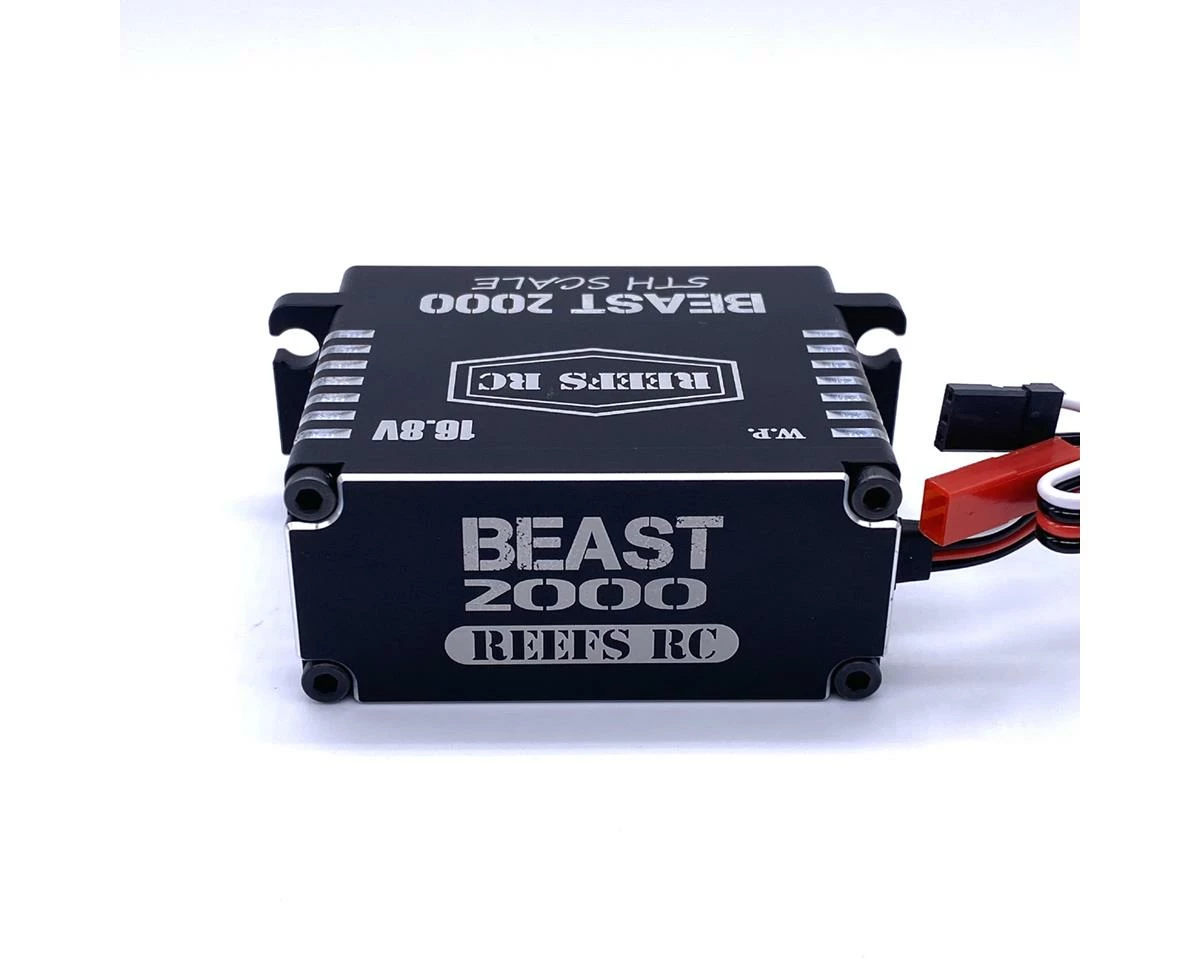

Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo (High Voltage)

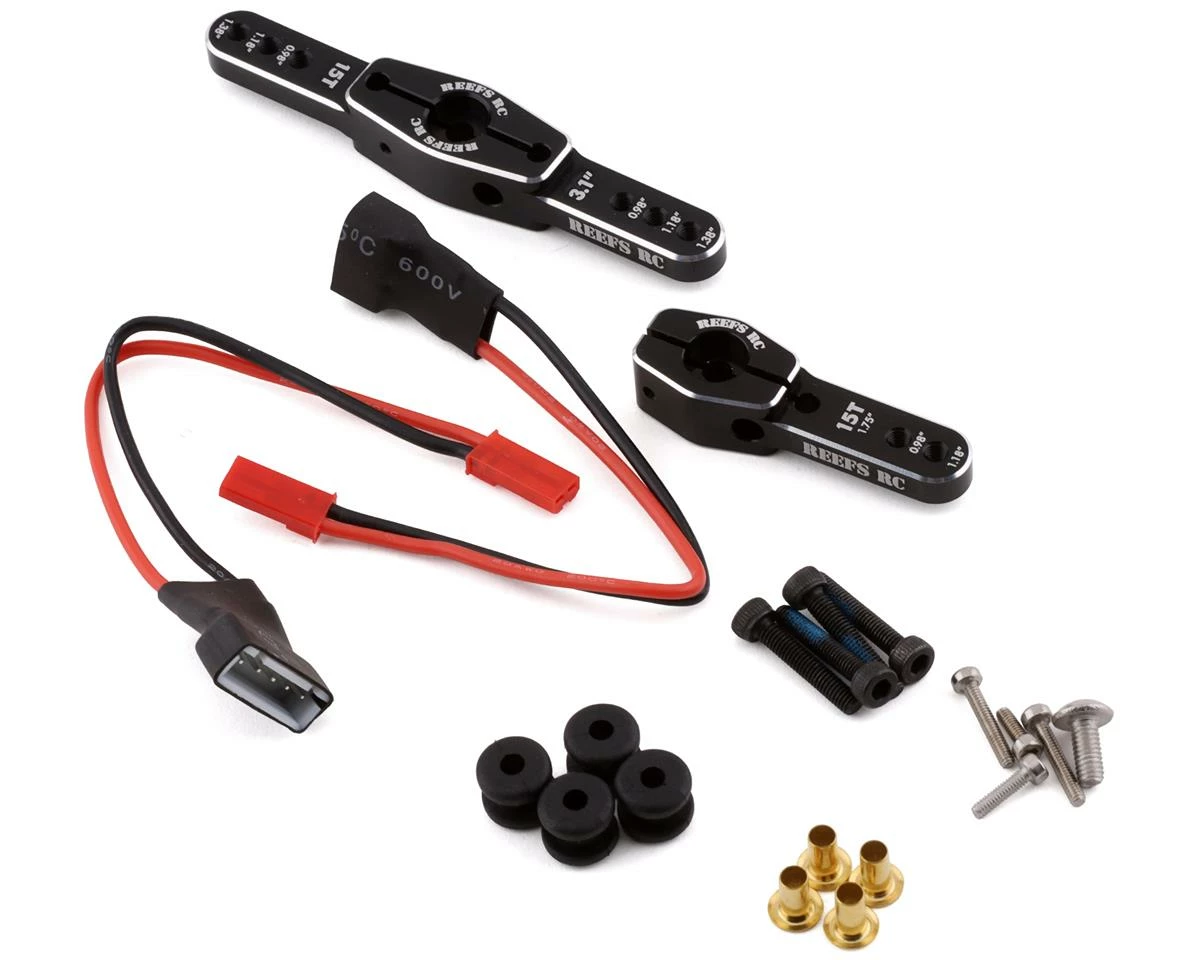

Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 2000oz-in. at 16.8V and 0.09/60° sec! To connect this servo there is a standard servo connector with a ground and signal wire and a JST connector for main power and ground. Two power adapters are included to connect the JST connector to the balance lead of either a 3S or 4S battery. Package includes one servo, two power adapters, two servo horns and hardware.

Features:

• High torque and high speed brushless servo
• Magnetic angle sensor
• Waterproof
• 16.8V capable
• Pulse width modulation control
• Includes Reefs single and double servo horn

Specifications:

• Voltage: 7.4-16.8V
• Waterproofing: 7 Point Seal
• Mechanical Angle: No Limit
• Material: Steel Gears/CNC Aluminum Casing
• Bearing Type: 5 Ball Bearing
• Wires: 22AWG
• Weight: 10oz (285g)
• Dimension: 2.59×1.18×2.32in (LxWxH)
• Torque:
• 10V: 1000oz-in
• 11.1V: 1250oz-in
• 12V: 1450oz-in
• 16.8V: 2000oz-in
• Speed:
• 10V: 0.10/60° sec
• 11.1V: 0.11/60° sec
• 12V: 0.10/60° sec
• 14.4V: 0.09/60° sec
• 16V: 0.08/60° sec
• Spline: 15T
• Dead Band Width: 2uSec
