Protek RC 500BL “Black Label” 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case)
Original price was: $89.99.$62.99Current price is: $62.99.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.

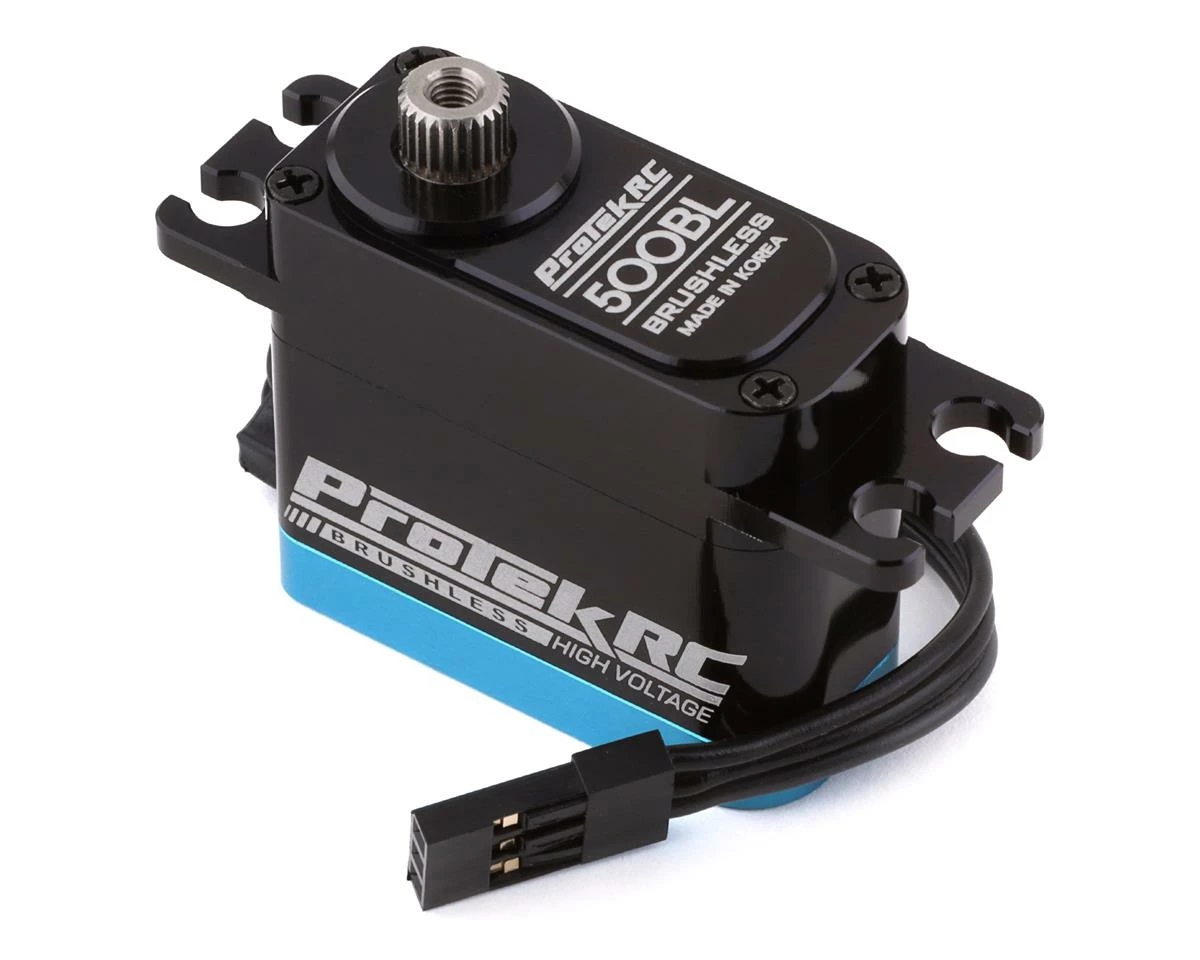

ProTek RC 500BL Black Label High Torque Brushless Mini Servo
The ProTek 500BL Mini is the next step in mini servo performance. Developed for 1/12 and 1/10 pan car, as well as 1/10 Pro Class drag racing pan car style chassis that use a mini size servo, this brushless option produces 186oz of torque and .06 transit speed at 7.4 volts – with superior efficiency and lifespan.
A black anodized aluminum case with a blue anodized bottom cover provides a stealthy and clean look. The aluminum case allows for extreme durability and a precision fit for the servo gears to provide the precise control necessary for demanding enthusiasts. Metal gears and brushless circuitry round out the package to create a robust option that will go the distance in high demand applications.
NOTE:
- If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
- Modification may be required for drag applications.
Features:
- Ideal for any 1/12 & 1/10 Pan Cars and Pro Class Drag Racing applications
- Full aluminum black anodized case
- High voltage circuitry
- 0.08 transit speed, and 161 oz-in of torque @ 6.0V
- 0.06 transit speed, and 186 oz-in of torque @ 7.4V
- Full metal gears
- Brushless motor
| Servo Model |
500BL |
| Recommended Application | 1/12 & 1/10 Pan Car or Pro Class Drag Racing |
| Operating Voltage | 4.8V – 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
| Operating Speed @ 7.4V |
0.06/60° sec |
| Dynamic Torque @ 6.0V |
161 oz-in (11.59 kg-cm) |
| Dynamic Torque @ 7.4V |
186 oz-in (13.39 kg-cm) |
| Motor Type |
Brushless Digital |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 42g |
| Pulse/Frequency |
1520Us / 333hz |
| Dimensions | 34×30.80×15.50mm |
| Length (Bottom to Mount) |
21.30mm |
This product was added to our catalog on September 13, 2021
