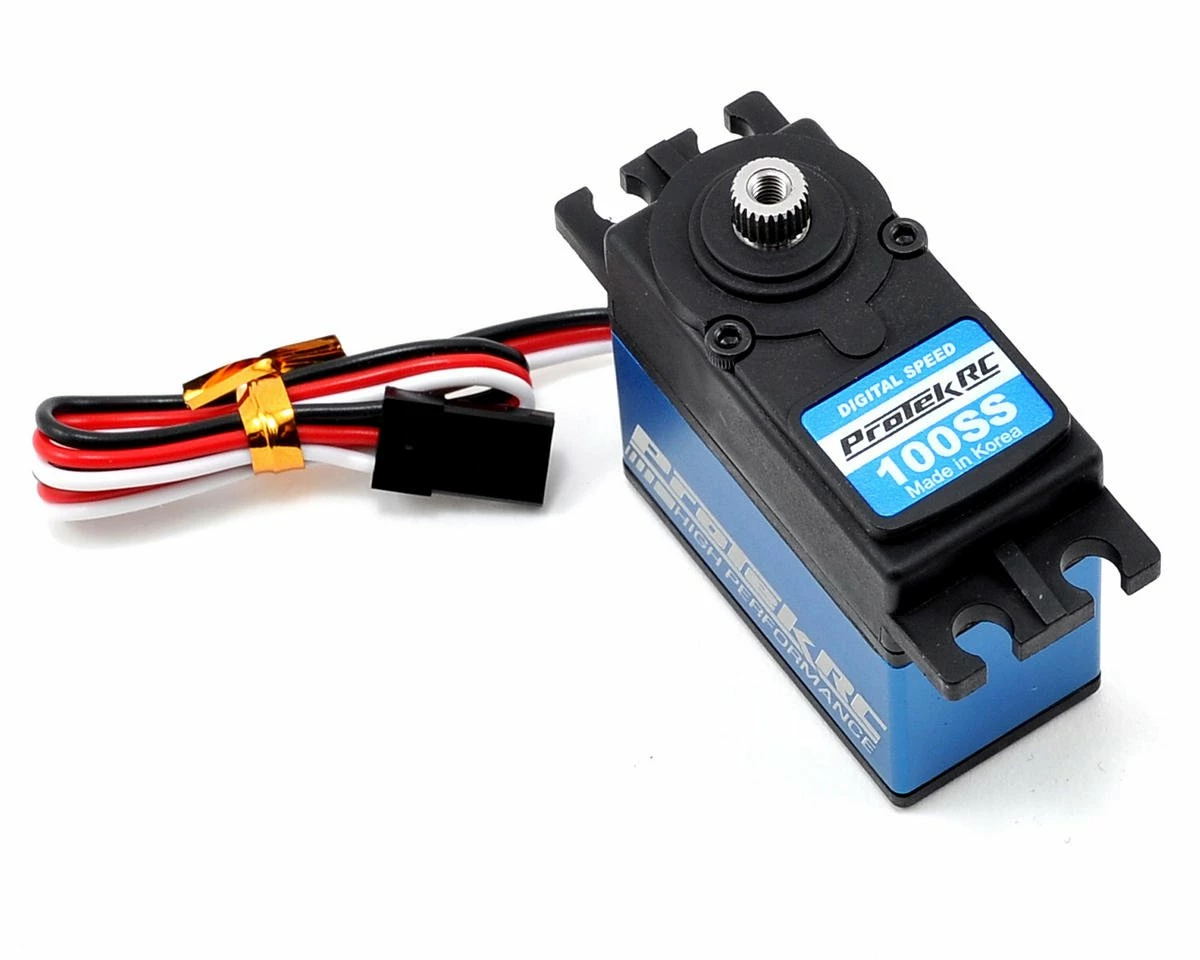

Protek RC 100SS Standard Digital “Super Speed” Metal Gear Servo

This is the ProTek R/C 100SS Digital Super Speed Metal Gear Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo’s that will exceed expectations at every level. With features that meet or surpass what the competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

The ProTek R/C 100SS Digital Super Speed servo delivers a swift 0.09 transit speed and 168 oz-in of torque. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a cored motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.

Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don’t look back.

Warning! This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

Features:

• Ideal for any 1/10 scale vehicle application
• Aluminum middle case
• 0.09 transit speed, and 168 oz-in of torque @ 6.0V

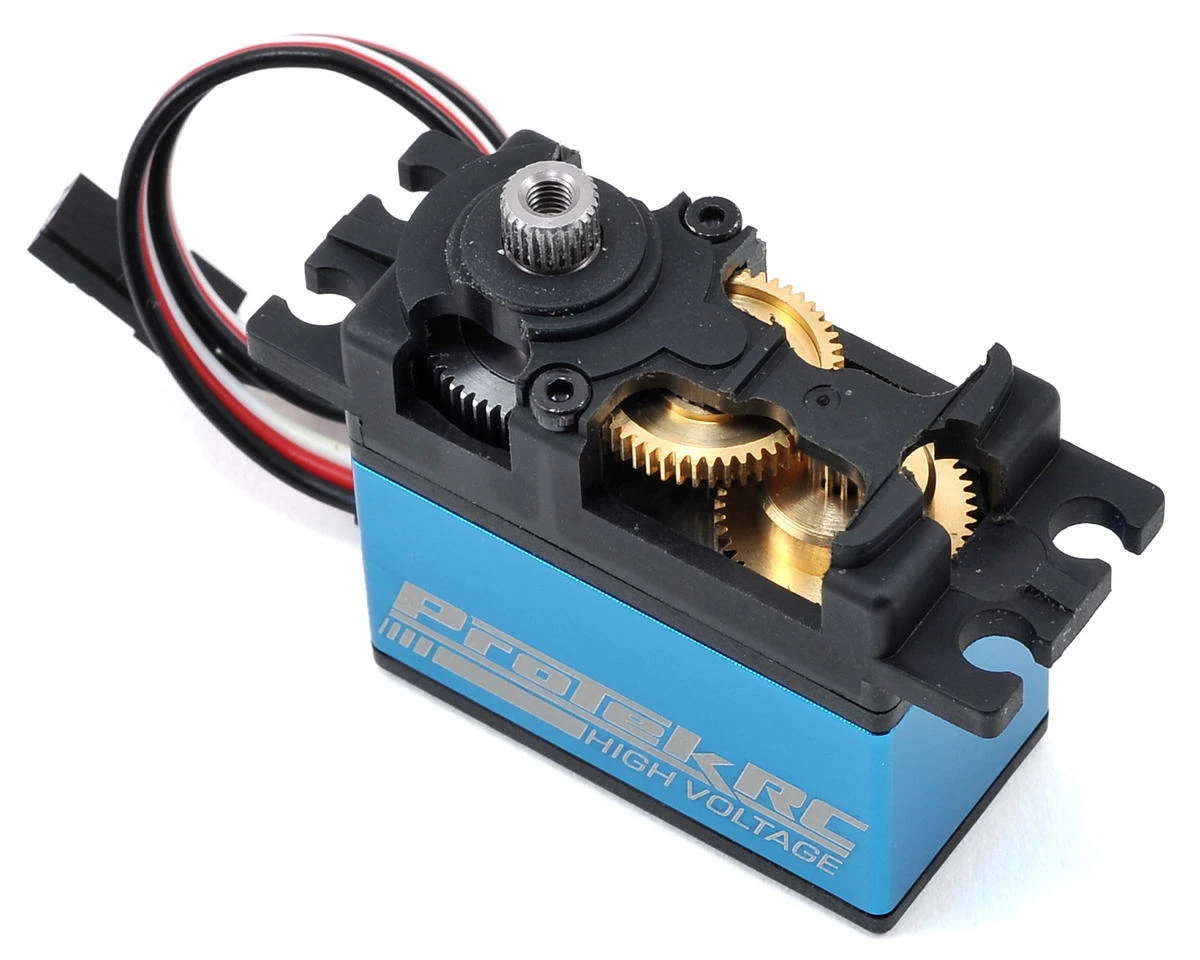

• Full metal gears and dual ball bearings
• 200mm long 22awg connector wire w/gold plated connectors
• Cored Motor

Servo Model	100SS
Recommended Application	1/10 scale surface
Operating Voltage	4.8V – 6.0V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 4.8V	0.11/60° sec
Operating Speed @ 6.0V	0.09/60° sec
Dynamic Torque @ 4.8V	134 oz-in (9.6 kg-cm)
Dynamic Torque @ 6.0V	168 oz-in (12.1 kg-cm)
Motor Type	Cored DC Motor
Output Shaft	25 Tooth
Gears	Metal
Weight	54.9g
Pulse/Frequency	1520?s / 333hz



ProTek R/C is an AMain Sports & Hobbies brand

This product was added to our catalog on March 27, 2013
