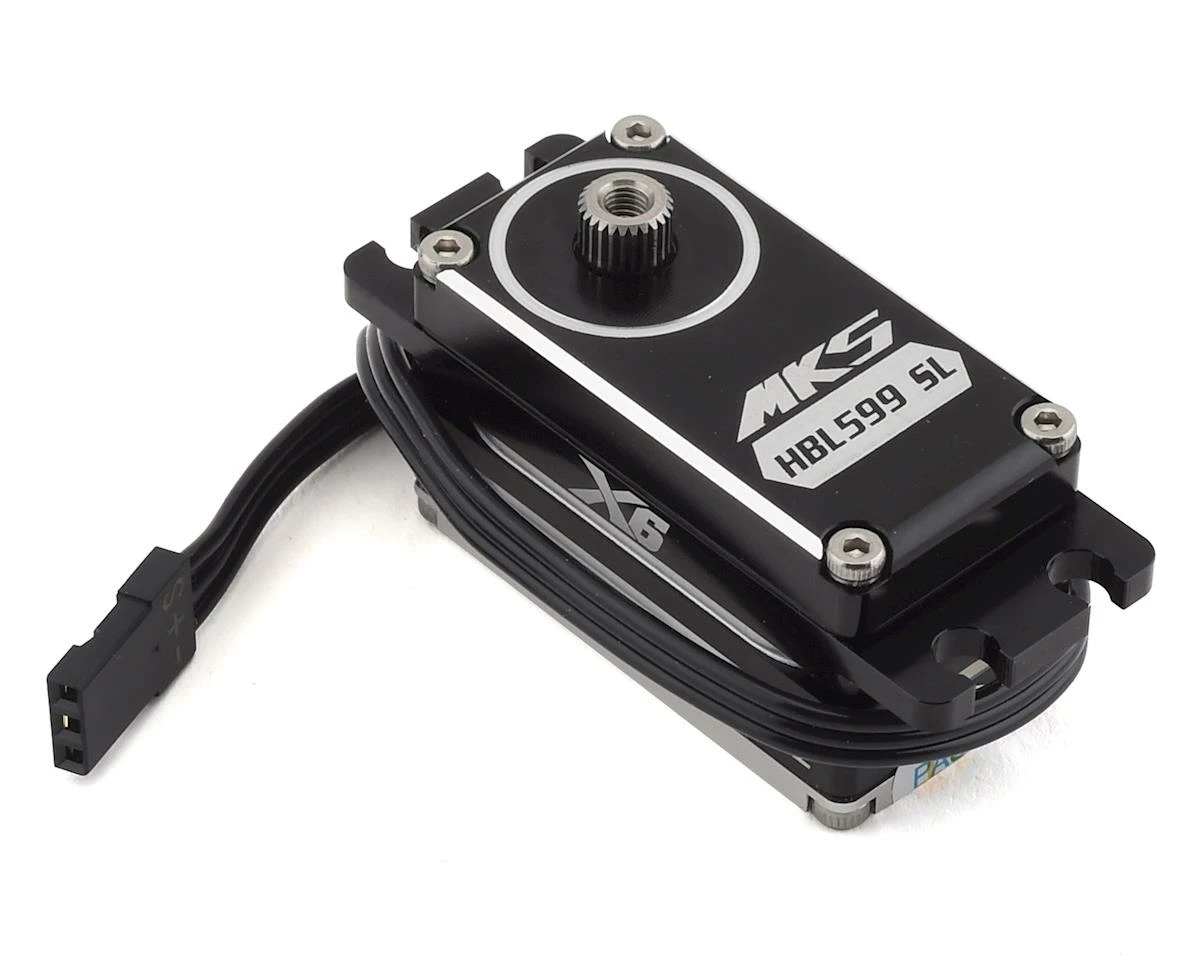

MKS Servos X6 HBL599SL Brushless Titanium Gear Low Profile Digital Servo (High Voltage)

The MKS X6 HBL599SL Brushless Titanium Gear High Torque Digital Servo is perfect for 1/10 to 1/5 scale applications that require stump pulling torque, low power consumption and high speed, combined with the flexibility of high voltage circuitry in a low profile size package.

Features:

• Ideal for 1/10 monster truck, 1/8 truck and buggy and 1/5 scale applications
• Ultra torque, incredible efficiency, and low power consumption
• Smoother, faster, more efficient for top level performance
• Chrome-Titanium gears for precision and durability
• .11 / 249 oz-in @6.0V and .09 / 319 oz-in @ 8.2V!
• Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 0.0008ms Dead Band
• Superior Holding Torque
• Japanese Brushless Motor

Specifications:

• Torque:
• @6.0V: 249.9 oz-in
• @7.4V: 319.4 oz-in
• Speed:
• @6.0V: 0.11 s
• @7.4V: 0.09 s
• Weight: 53.5 g
• Dimension: 40x20x23.1mm
• Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
• Working frequency: 1520μs / 333Hz
• Dead Band: 0.0008 ms (Default)
• Bearing: 2BB
• Motor: Japan High Quality Brushless Motor
• Gear: Chrome-Titanium alloy gear

This product was added to our catalog on October 12, 2018
