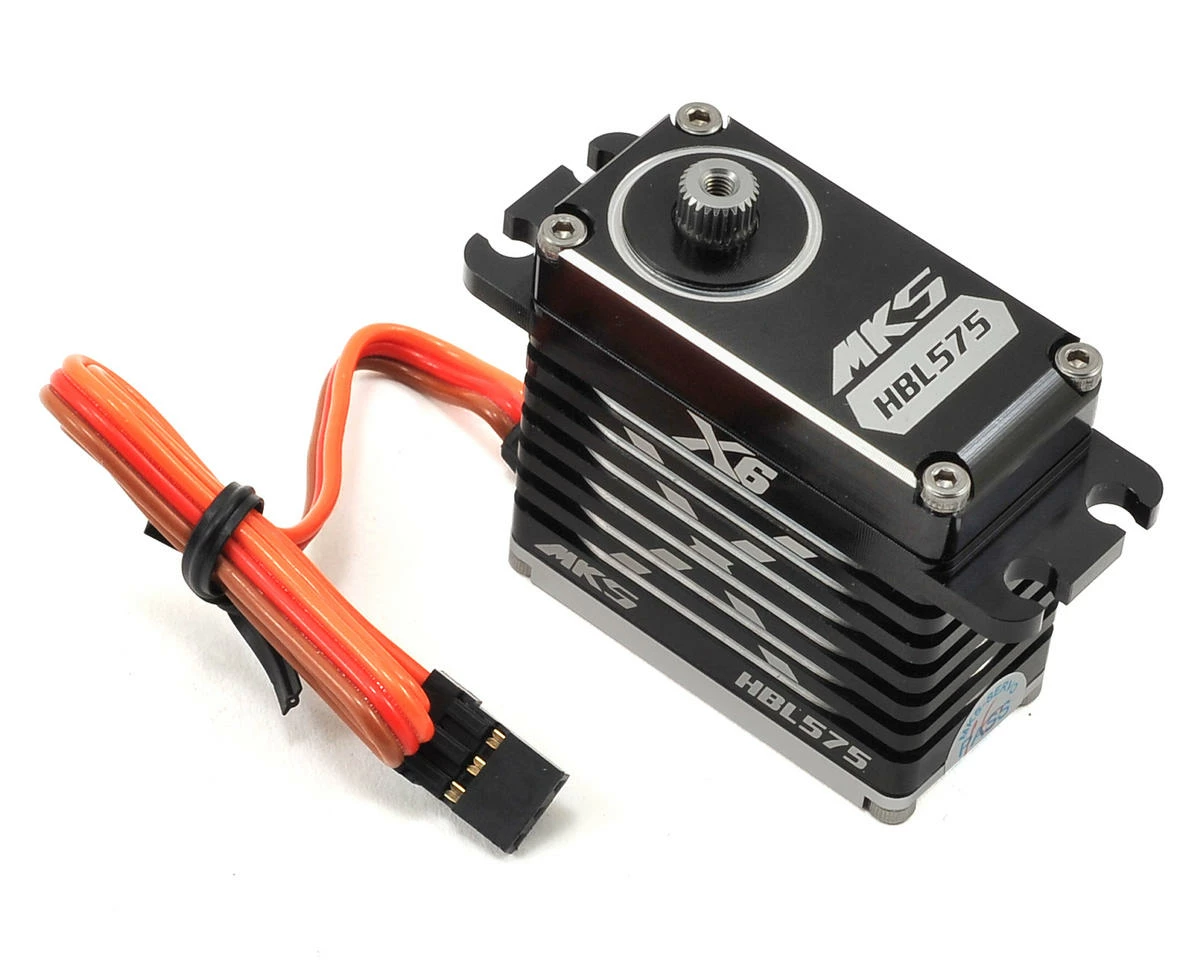

MKS Servos X6 HBL575 Brushless Titanium Gear High Speed Digital Servo (High Voltage)

The MKS X6 HBL575 Brushless Titanium Gear High Speed Digital Servo is perfect for 1/10 and 1/8 scale applications that require high speed, low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry in a standard size package.

Features:

• Ideal for 1/10 and 1/8 buggy applications
• High speed, incredible efficiency, and low power consumption
• Chrome-Titanium gears for precision and durability
• .082 / 249.9 oz-in @6.0V and .06 / 333.3 oz-in @ 8.2V!
• Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 0.0008ms Dead Band
• Superior Holding Torque
• Japanese Brushless Motor

Specifications:

• Torque:
• @6.0V: 249.97 oz-in (18 kg-cm)
• @7.4V: 305.5 (22 kg-cm)
• @8.2V: 333.3 (24 kg-cm)
• Speed:
• @6.0V: 0.082 s
• @7.4V: 0.066 s
• @8.2V: 0.06 s
• Weight: 71.4 g
• Dimension: 40x20x38.5mm
• Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
• Working frequency: 1520?s / 333Hz
• Dead Band: 0.0008 ms (Default)
• Bearing: 2BB
• Motor: Japan High Quality Brushless Motor
• Gear: Chrome-Titanium alloy gear

This product was added to our catalog on August 5, 2015
