MKS Servos HV9780 Titanium Gear High Voltage Tail Mini Servo W/Aluminum Case
Original price was: $100.99.$70.69Current price is: $70.69.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.

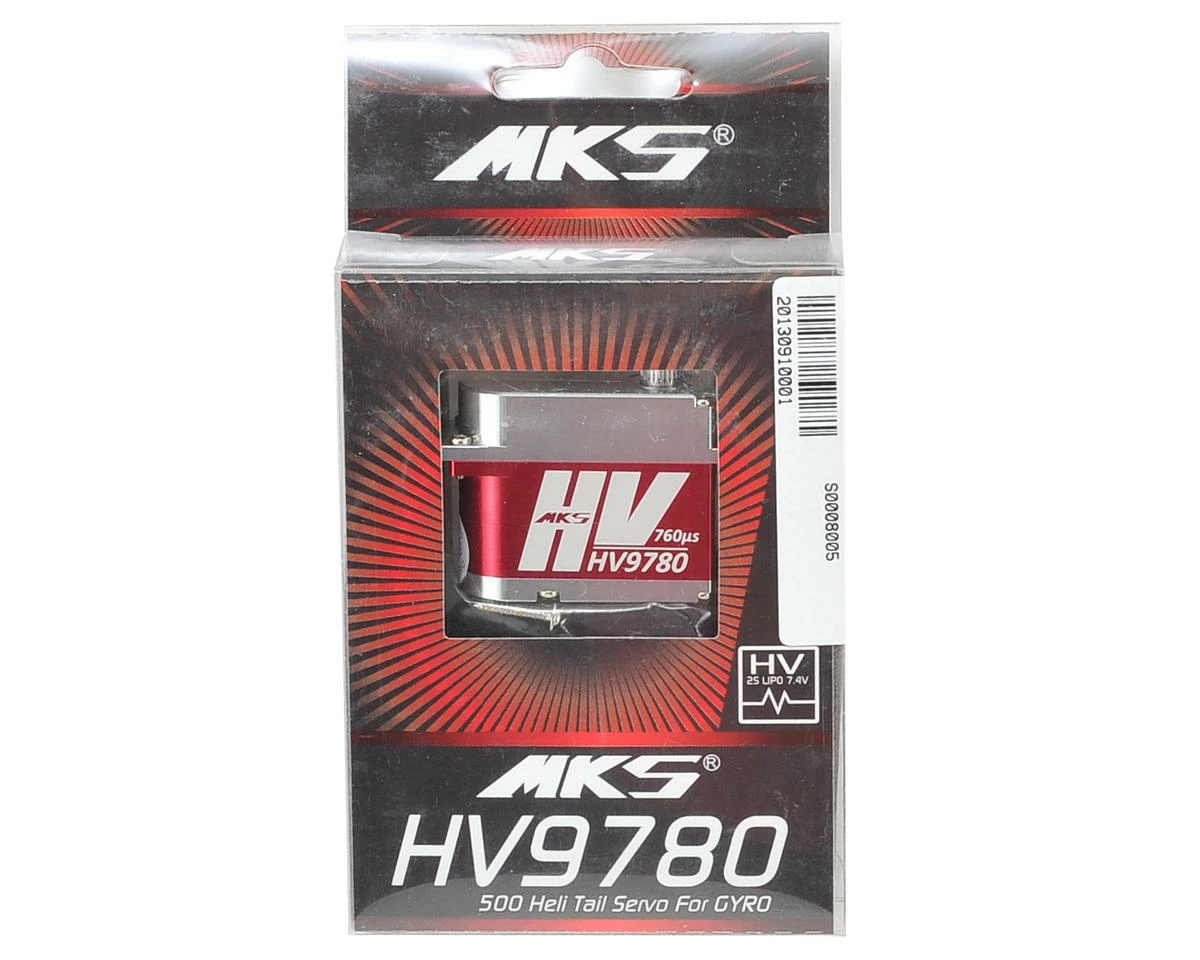

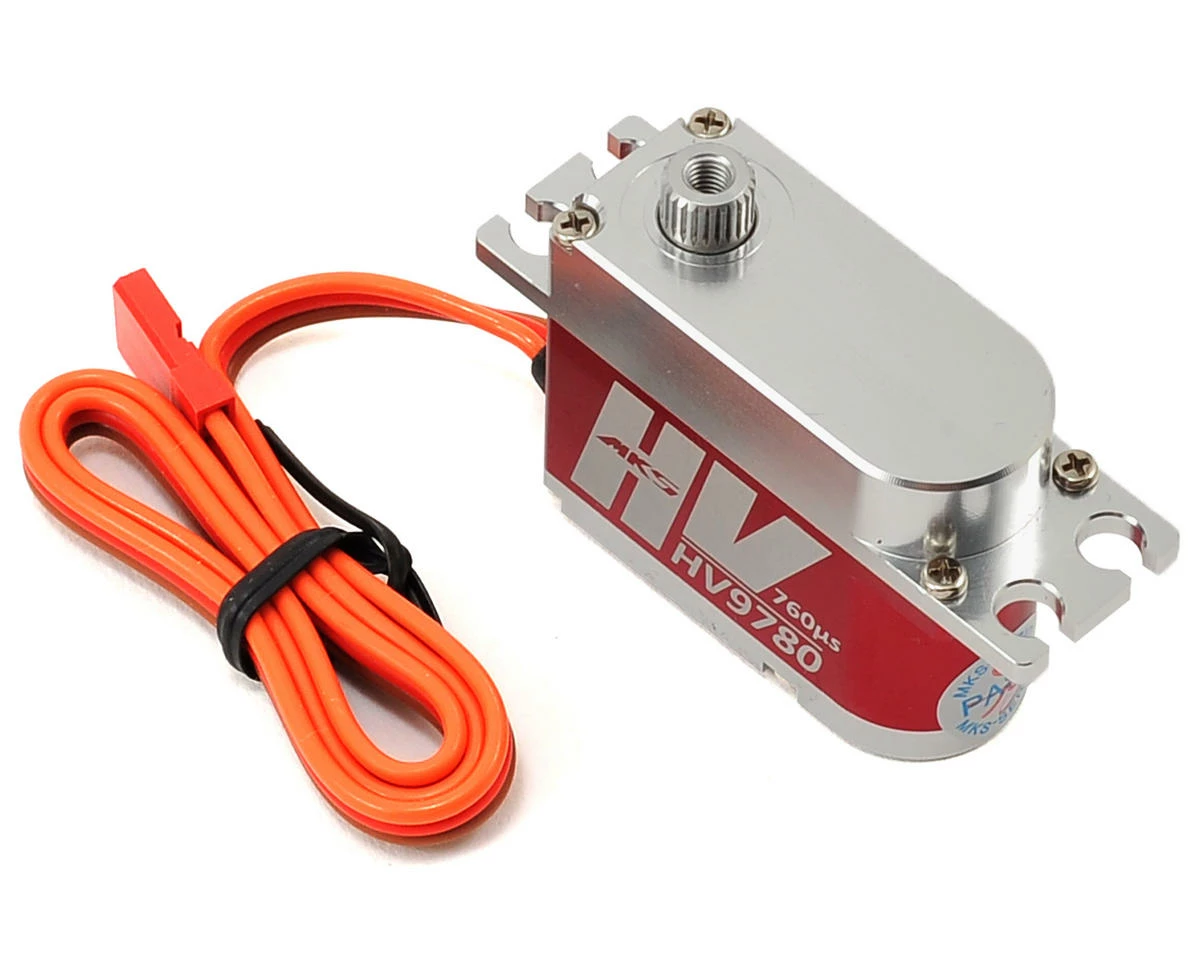

This is an MKS HV9780 Titanium Gear High Voltage Tail Mini Servo with Aluminum Case. This servo is recommended for 500 class helicopter tail applications.
Compatible Gyro’s:
- Spartan DS760, Quark
- Futaba GY611, GY601, GY520
- ALIGN GP700, GP750
- Mikado V-Bar Tail, CSM SL720
- Curtis Youngblood Mini-G, Solid G
- Thunder Tiger TG-7000
- BeastX Mircobeast
Specifications:
- Torque:
- @6.0V: 45.8 oz-in (3.3 kg-cm)
- @7.4V: 55.5 oz-in (4.0 kg-cm)
- @8.2V: 62.4 oz-in (4.5 kg-cm)
- Speed:
- @6.0V: 0.055 s
- @7.4V: 0.045 s
- @8.4V: 0.040 s
- Weight: 38.01 g
- Dimension: 35.5x15x28.5mm
- Working Voltage: 5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
- Working Frequency: 760μs / 560hz
- Dead Band: 0.001 ms (Default)
- Bearing: 2BB
- Motor: Coreless Motor
- Gear: Chrome-Titanium alloy gear
- Electric Current Draw: 2.6A max.(8.2V)│2.4A max.(7.4V)│2.0A max (6.0V)
- Wire Length: 29.5 cm
