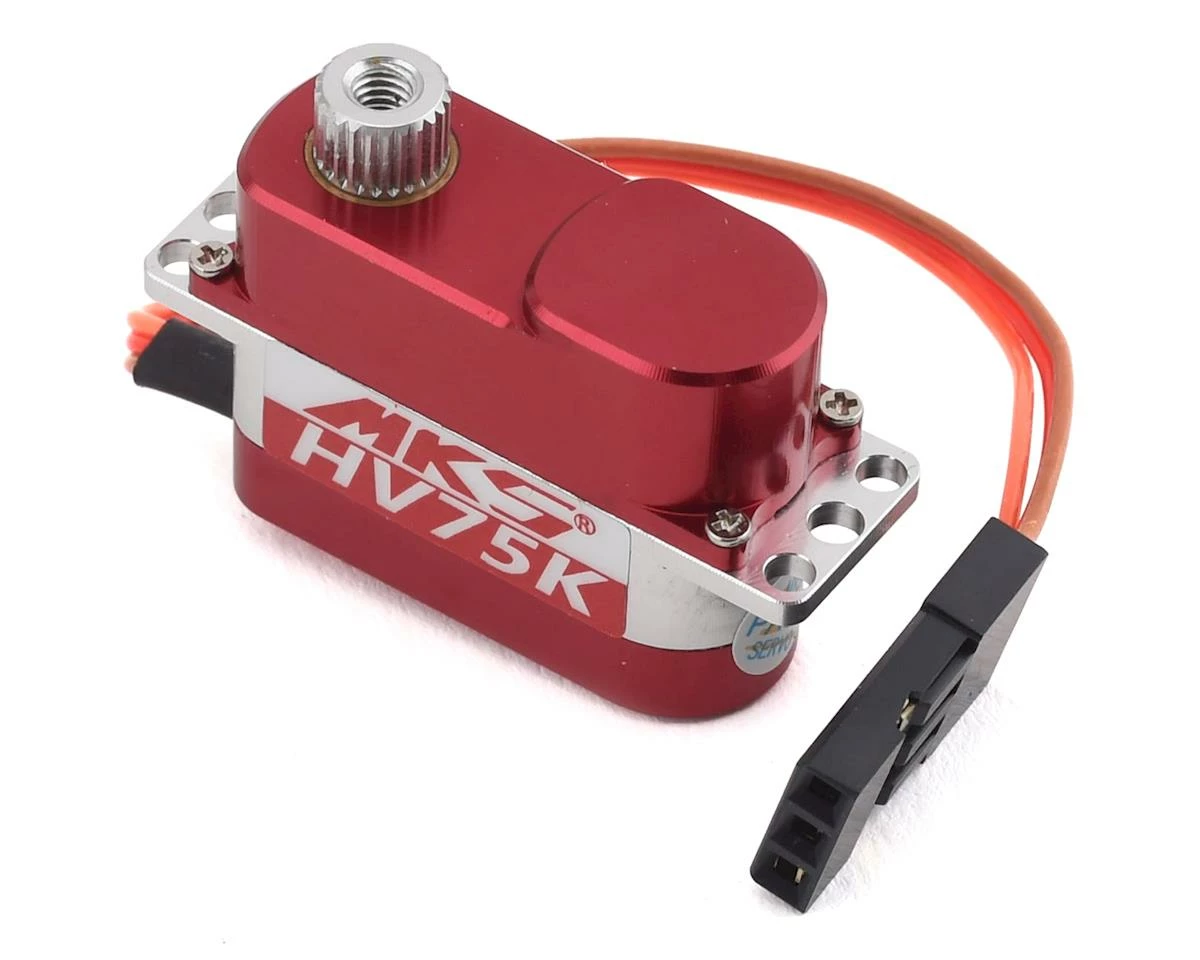

MKS Servos HV75K Titanium Gear High Speed Glider Wing Servo W/Aluminum Case

The MKS HB75K Titanium Gear High Speed Glider Wing Servo is perfect for discus launch, hand launch and F3K glider applications that require a precise wing servo with low power consumption, superior holding torque, and high voltage compatibility – combined with a precision machined aluminum case.

Specifications:
Dead Band: 0.001ms (Default)
Control System: +Pulse Width Control
Working Frequency: 1520μs / 333Hz
Operating Voltage: 3.7 ~ 8.2 V DC Volts (for 2S ~ 1S LiPo)
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (6V): 0.13 sec/60° degrees at no load
Operating Speed (7.4V): 0.10 sec/60° degrees at no load
Operating Speed (8.4V): 0.09 sec/60° degrees at no load
Stall Torque (6V): 2.30 kg/cm (31.9 oz/in)
Stall Torque (7.4V): 2.8 Kg/cm (38.88 oz/in)
Stall Torque (8.4V): 3.3 Kg/cm (45.83 oz/in)
Motor Type: Coreless Motor
Potentiometer Drive: Direct Drive
Driver Type: FET
Bearing Type: 1x Ball bearing + 1x Oil retaining bearing + x Jewel bearing
Gear Type: 7075 Chrome-Titanium alloy gear
Dimensions: 23 X 9 X 16.7 mm
Weight: 7.5 g

This product was added to our catalog on December 7, 2018
