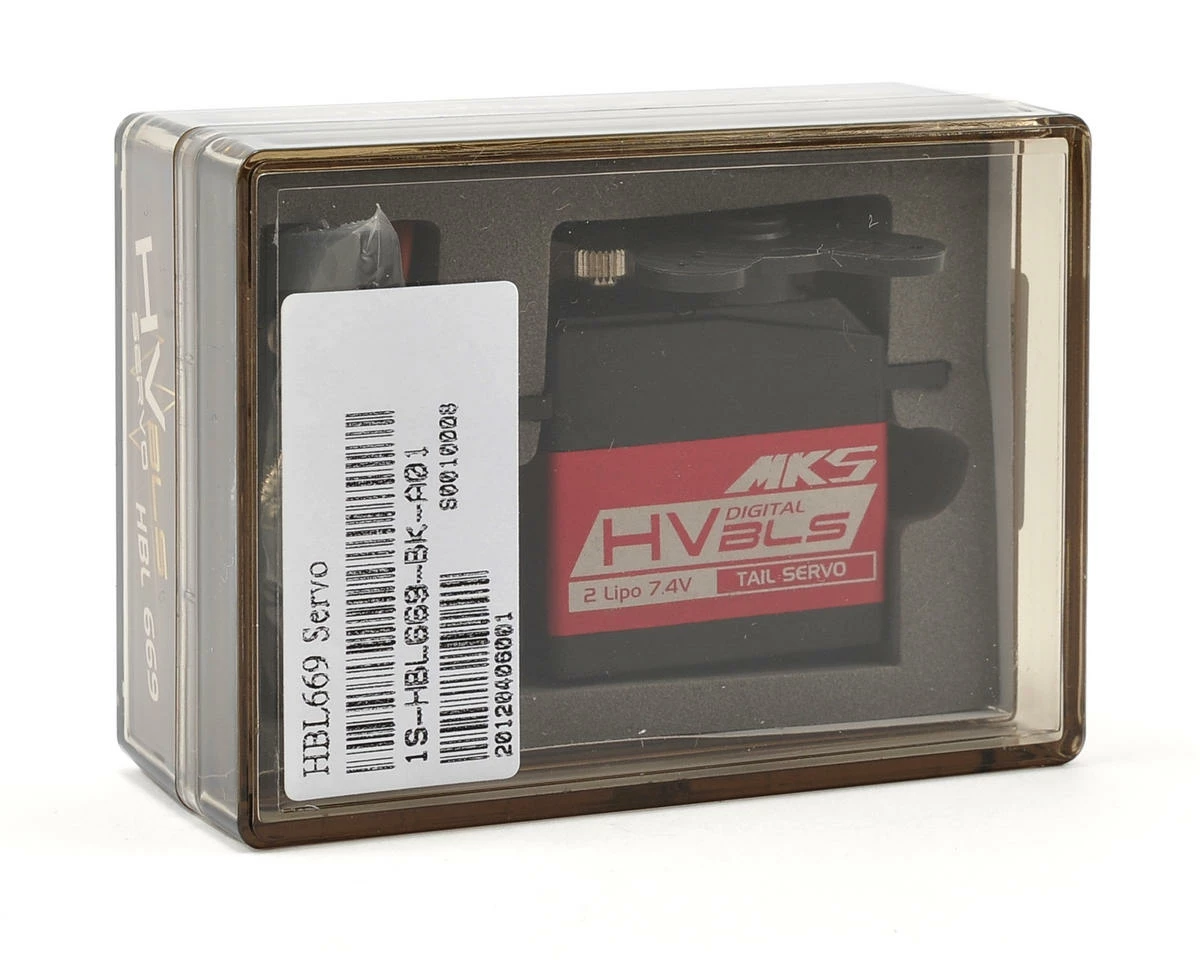

MKS Servos HBL669 Brushless Titanium Gear High Speed Digital Tail Servo (High Voltage)

This is the MKS HBL669 High Voltage Brushless Titanium Gear High Speed Digital Tail Servo, and is recommended for helicopter tail applications. The HBL line of servos has been designed exclusively for high voltage applications making them a great match with an unregulated 2S LiPo battery pack. In addition, the HBL series of servo’s are lightning fast, extremely strong and operate with little noise.

Specifications:
Dead Band: 0.0005ms (Default)
Control System: +Pulse Width Control
Working Frequency: 760μs / 560hz
Operating Voltage: 4.0 ~ 8.4 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (6V): 0.05 sec/60° degrees at no load
Operating Speed (7.4V): 0.04 sec/60° degrees at no load
Stall Torque (6V): 58.33 oz/in (4.2 kg-cm)
Stall Torque (7.4V): 70.82 oz/in (5.1 kg-cm)
360° Modifiable: NO
Motor Type: Brushless Motor
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Ball Bearings
Gear Type: Chrome-Titanium alloy gear
Connector Wire Length: 24.0cm (9.4 in)
Dimensions: 40x20x40mm (1.57×0.79×1.50 in)
Weight: 63g (2.22 oz)

This product was added to our catalog on June 13, 2012
