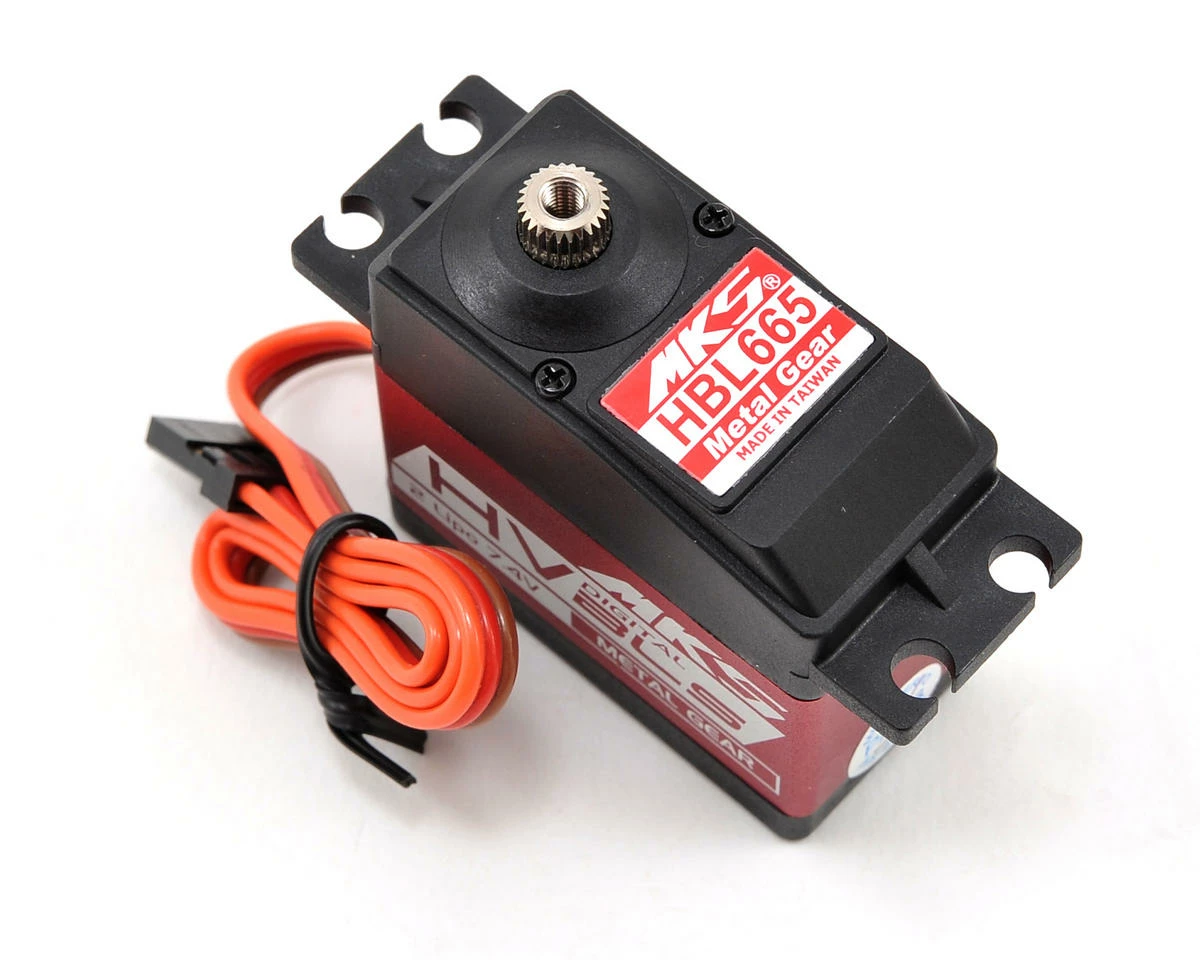

MKS Servos HBL665 Brushless Ti-Gear High Torque Digital Cyclic Servo (High Voltage)

This is the MKS HBL665 High Voltage Brushless Digital Servo, and is recommended for cyclic applications. The MKS HBL line of servos has been designed exclusively for high voltage applications making them a great match with an unregulated 2S LiPo battery pack. In addition, the HBL series of servo’s are lightning fast, extremely strong and operate with little noise.

Specifications:
Dead Band: 0.0005ms (Default)
Control System: +Pulse Width Control
Working Frequency: 1520μs / 333hz
Operating Voltage: 4.0 ~ 8.4 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (6V): 0.13 sec/60° degrees at no load
Operating Speed (7.4V): 0.10 sec/60° degrees at no load
Stall Torque (6V): 169 oz/in (12.2 kg/cm)
Stall Torque (7.4V): 211 oz/in (15.2 kg/cm)
360° Modifiable: NO
Motor Type: Brushless Motor
Potentiometer Drive: Indirect Drive
Bearing Type: Dual Ball Bearings
Gear Type: Chrome-Titanium alloy gear
Connector Wire Length: 24.0 cm (9.4 in)
Dimensions: 40x20x40mm (1.57×0.79×1.50 in)
Weight: 63 g (2.22 oz)

This product was added to our catalog on June 13, 2012
