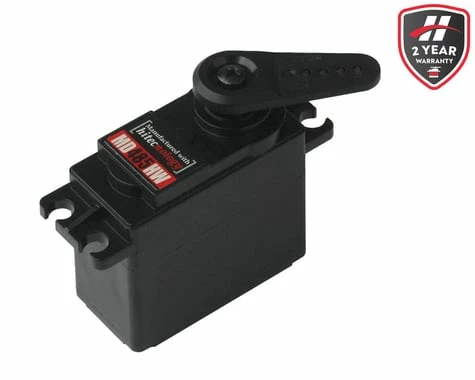

Hitec MD485HW 32bit Digital Standard Karbonite Gear Drag Servo
Original price was: $34.99.$24.49Current price is: $24.49.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.
The Hitec MD485HW 32bit Digital Standard Karbonite Gear Drag Servo features a magnetic encoder position sensor for increased accuracy and durability. This performance enhancement provides higher centering precision, straighter tracking and faster times on the strip, making it the ideal answer for the radio control drag racing enthusiast. Hitec’s 32bit D-series circuit, 4096-step resolution and zero backlash Karbonite gears make the MD485HW the durable, dependable servo that Team Hitec drivers recommend. Plus, it is priced right, costing much less than most servos in its class.
Features:
- High Resolution 32-bit (4096 steps) Programmable Digital Circuit
- PWM or TTL Protocol Capability
- Magnetic Encoder Position Sensor
- Wide Operating Voltage (4.8 ~ 8.4V)
- Heavy-Duty, Long Life Motors
- IP65 Rated Cases
- Customization and Modification Options Available
- Custom Connector Options Available
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Specifications:
- Performance:
- Operating Voltage Range: 4.8V ~ 8.4V DC
- Speed: 0.20 ~ 0.15 Sec @ 60°
- Maximum Torque Range: 67 ~ 103 oz. / in. (4.8 ~ 7.4 kg. / cm.)
- Current Draw at Idle: 30 mA
- No Load Operating Current Draw: 320 mA
- Stall Current Draw: 1,500 mA
- Dead Band Width: 2us
- Physical:
- Dimensions: 1.57×0.78×1.50 (39.8×19.8×38.0mm)
- Weight: 1.59oz (45.0g)
- Circuit Type: 32 bit (4096 step)
- Motor Type: Cored Carbon Brush
- Gear Material: Plastic Resin Gears
- Bearing Type: Top Ball Bearing
- Output Shaft: 25 / 6mm Ø
- Case Material: Plastic
- Dust / Water Resistance: IP-65 Rated
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
