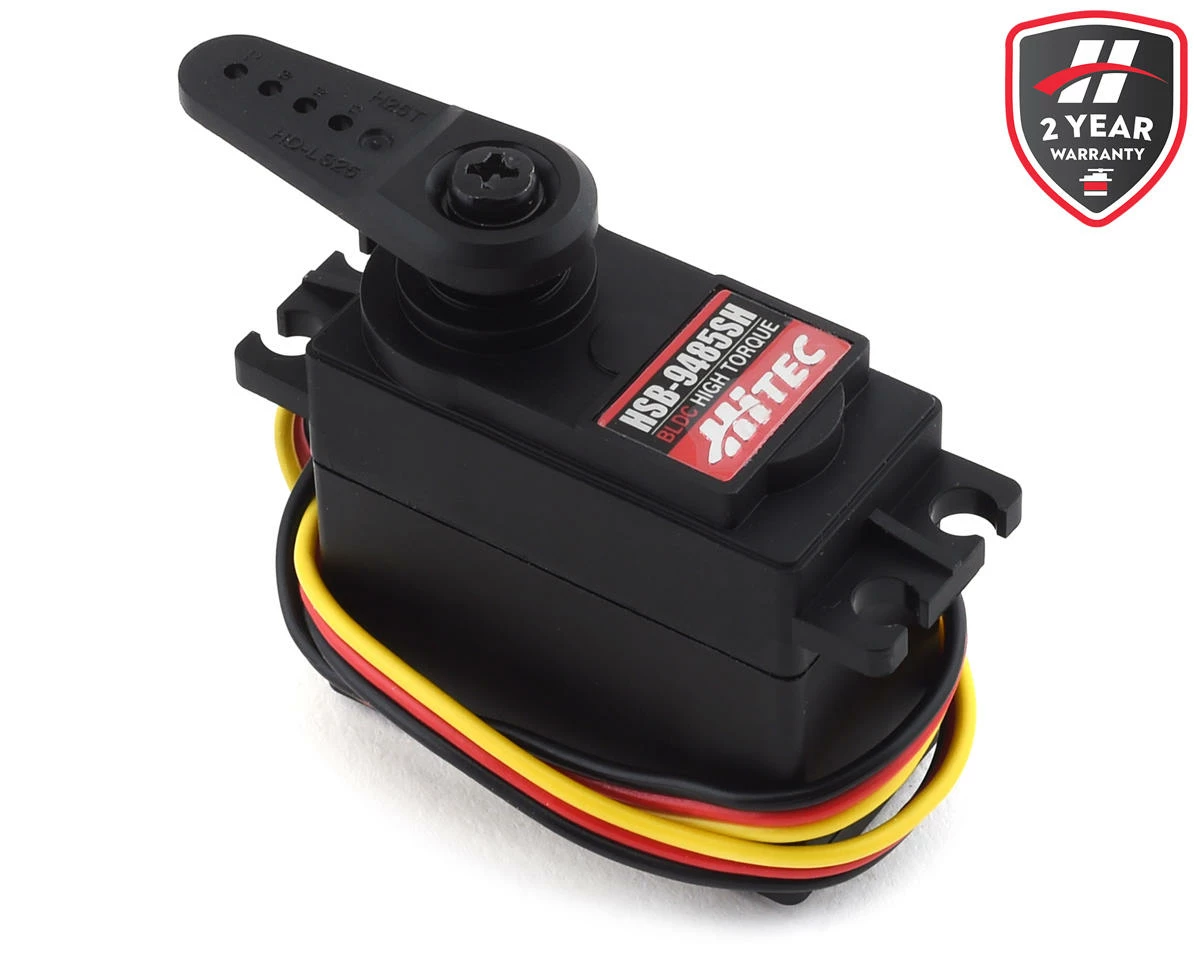

Hitec HSB-9485SH Brushless Steel Gear Digital Servo (High Voltage)

This is a Hitec High Voltage HSB-9485SH Brushless Steel Gear Digital Servo, designed with Hitec’s durable steel gears and impressive brushless motors with the HSB-9485SH bringing immense torque.

• Programmable 12-Bit PWM Digital Amplifier
• Custom Long Life Brushless Motor
• 1M Cycle Long Life Potentiometer
• Constant Output Torque
• Wide Operating Voltage (5 ~ 9 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• Dust Resistant and Splash Proof Case
• 25-Tooth Output Spline
• Nylon Reinforced Plastic Case
• Ultra Low Power Consumption

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Data Save / Load
• Program Reset (From File)

• Steel Gears Set (Link)
• Metal/Karbonite 1st Gear Set (Link)
• Plastic Case Set (Link)

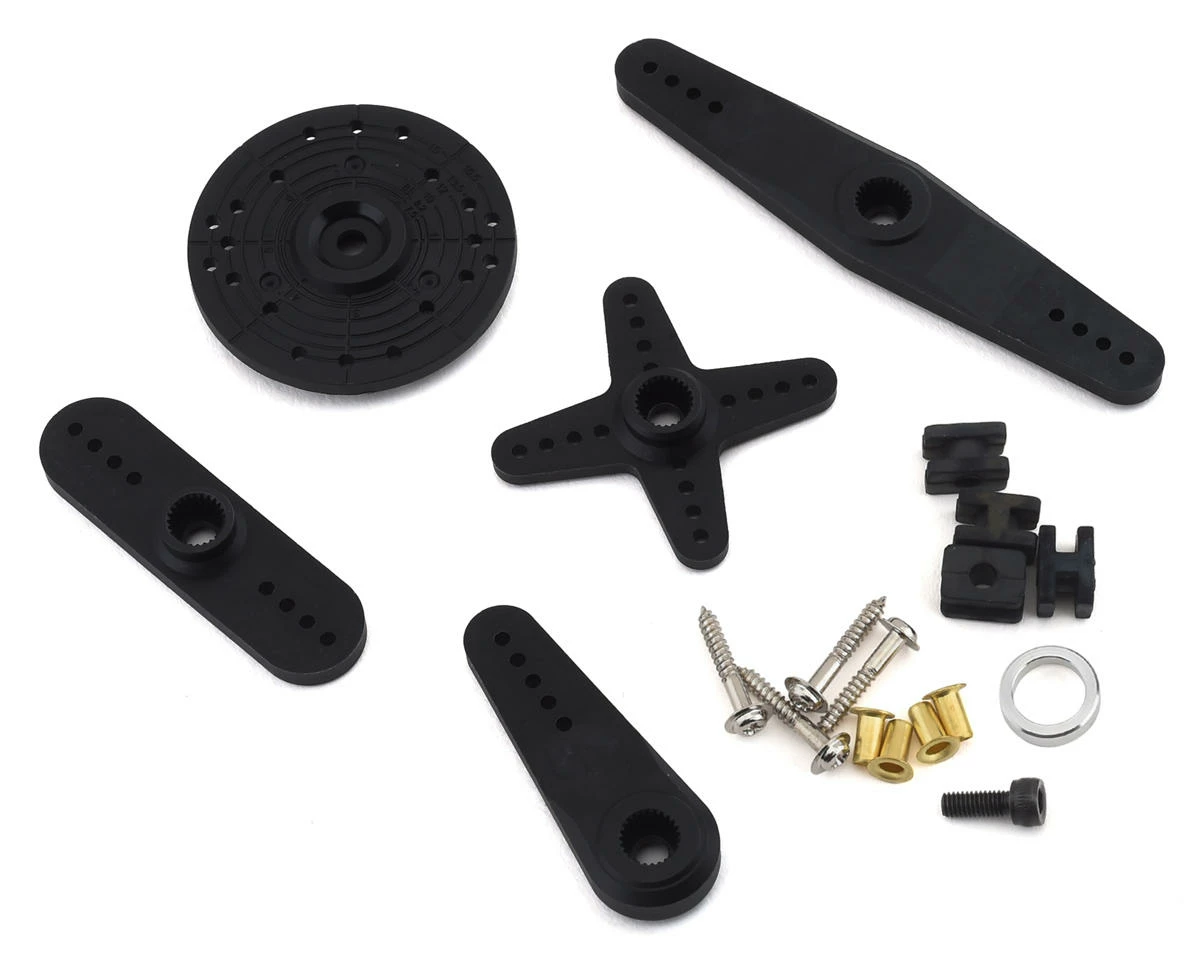

• Applicable Horns (Link 1 • 2 • 3)

Operating Voltage Range: (Volts DC) 6.0V ~ 7.4V

Speed: (Second @ 60°) 0.18 ~ 0.15

Maximum Torque Range oz./in.: 361

Maximum Torque Range kg./cm.: 26.0

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 430 mA

Stall Current Draw: 1,100 mA

Dead Band Width: 1 µs

Dimensions (Inches): 1.57 x 0.78 x 1.45

Dimensions (Metric): 40.0 x 20.0 x 37.0

Weight (Ounces): 2.19

Weight (Gram): 62.0

Circuit Type: EBL Digital

Motor Type: Brushless

Gear Material: Steel

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): H25T

Case Material: Plastic

Dust/Water Resistance Splash Proof: Yes

Connector Gauge (AWG)(Strand Count): 20/80

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
