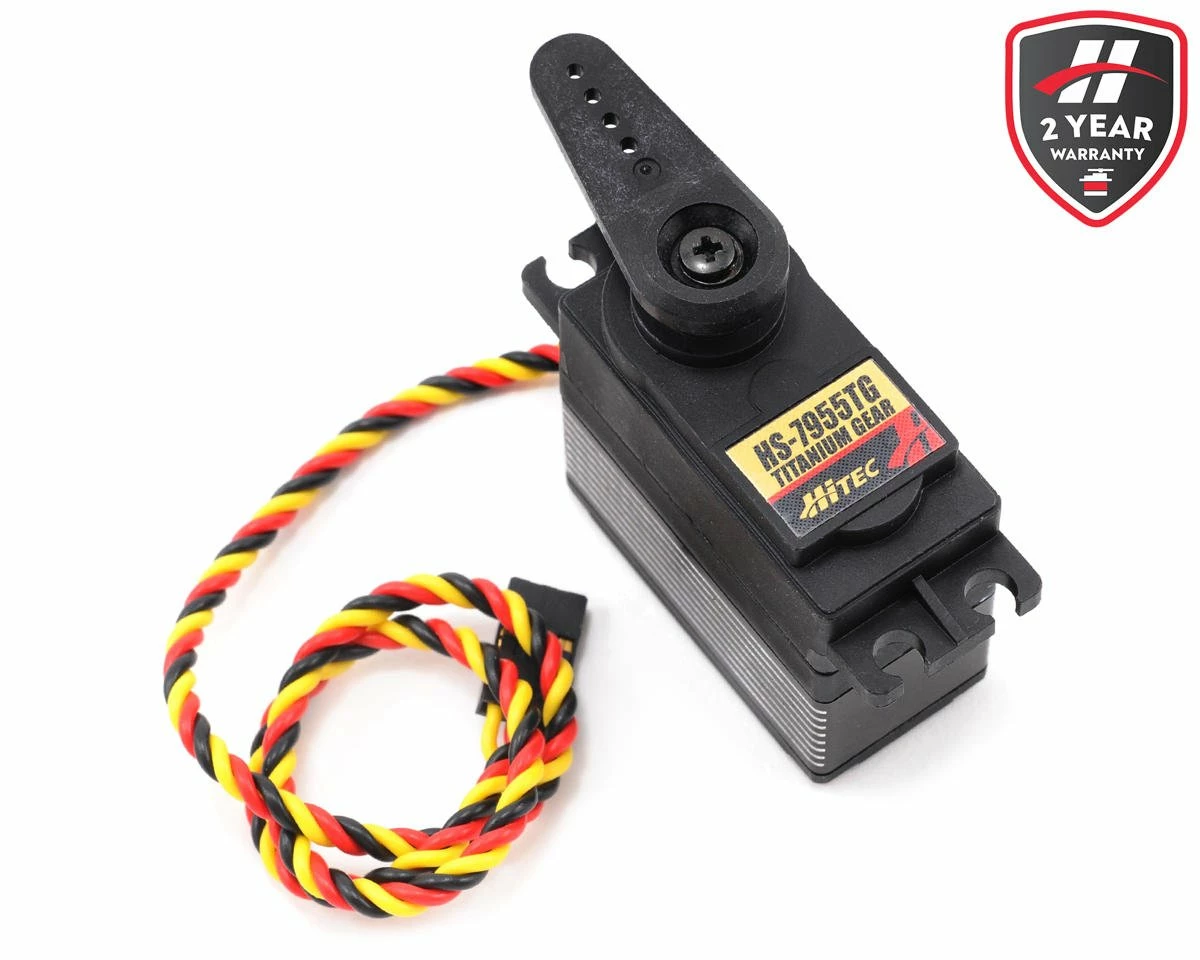

Hitec HS-7955TG V2 Torque Titanium Gear Digital Servo

Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features:

• G2 Digital Circuit
• Coreless Motor
• Dual Ball Bearing Supported Output Shaft
• Titanium Gear Train (MK first gear)
• *** Programmable Features Include: ***
• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point
• Resolution* (default is high resolution)
• Overload Protection* (default is off)
• *these features are only programable with the HFP-20 field programmer (#44430)

Specifications:

• Speed:
• 4.8V: 0.19 sec/60 deg.
• 6.0V: 0.15 sec/60 deg.
• Torque:
• 4.8V: 250 oz/in
• 6.0V: 333 oz/in
• Length: 1.57in (39.87mm)
• Width: 0.78in (19.81mm)
• Height: 1.45in (36.83mm)
• Weight: 2.29oz (65g)

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
