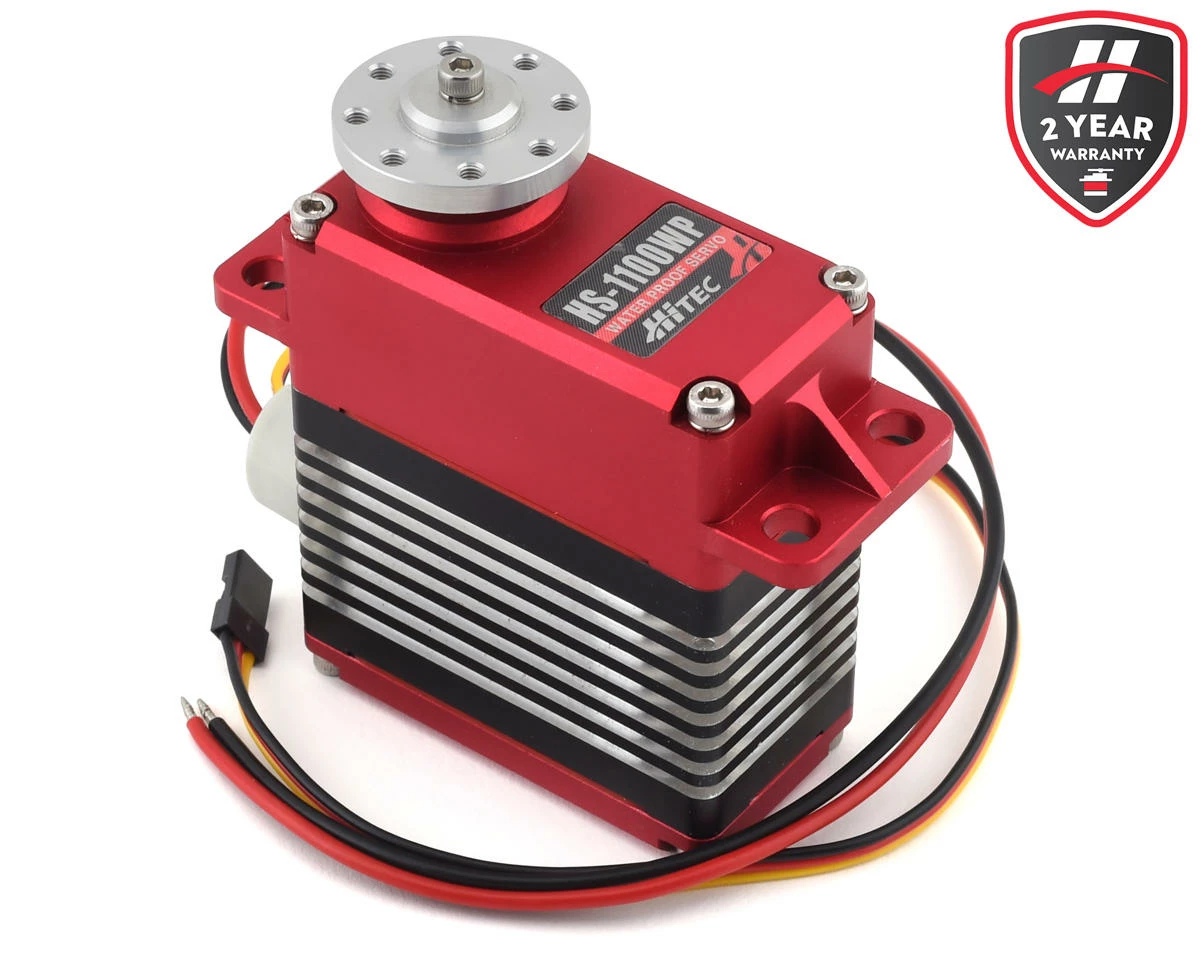

Hitec HS-1100WP Waterproof Ultra-Heavy Duty Full Metal Giant Scale Servo

The Hitec HS-1100WP Waterproof Ultra-Heavy Duty Full Metal Giant Scale Servo is a heavy-duty digital giant that delivers out-of-this-world torque performance and strength to all your large scale vehicles, airplanes and robotic projects. Made with impressively durable steel gears, robust EMI-shielded cases and an IP-67* rated code for maximum underwater protection, this addition to the Hitec giant servo line has s unrivaled industrial digital circuitry and engineering.

Features:

• Non-programmable, Industrial Digital Circuitry
• EMI-shielded Cases
• *International Protection Code 67 Rating
• (6=Dust Tight; Complete Protection Against Contact 7) – Immersion up to 1 meter
• Durable Steel Gears
• 14.8V 4-Cell LiPo Capability
• 5-Pole Carbon Brushed Motor

Specifications:
Operating Voltage Range (Volts DC): 11.1V ~ 14.8V
Speed (Second @ 60°): 0.26 ~ 0.19
Maximum Torque Range oz. / in.: 1167 ~ 1528
Maximum Torque Range kg. / cm.: 84 ~ 110
Current Draw at Idle: 130 mA
No Load Operating Current Draw: 1,300 mA
Stall Current Draw: 6,500 mA
Dead Band Width: 2 µs
Dimensions (Inches): 2.52 x 1.30 x 2.87
Dimensions (Metric): 64.0 x 33.0 x 73.0
Weight (Ounces): 12.80
Weight (Gram): 363.0
Circuit Type: Digital Amplifier with Mosfet Drive
Motor Type: 5 Poles Caored Carbon Brushless
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Mega 15
Case Material: CNC Aluminum
Dust / Water Resistance: IP 67
Connector Gauge (AWG) / Strand Count: 20 / 80

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on May 1, 2018
