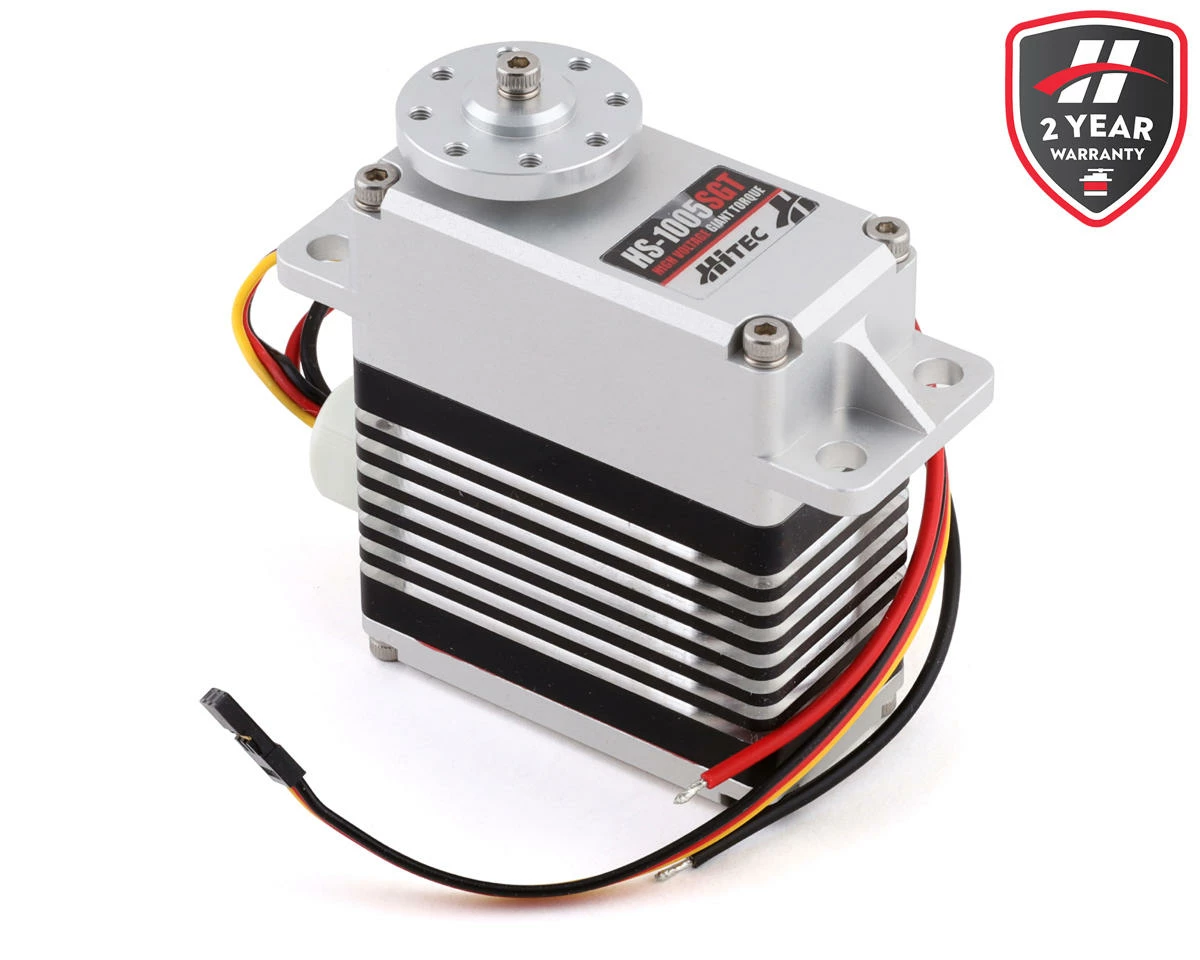

Hitec HS-1005SGT 1/5 Full Metal Giant Scale Industrial Servo

The Hitec HS-1005SGT Industrial Type Full Metal Giant Scale Servo is an ultra heavy duty, giant scale servo option that delivers digital precision and high voltage punch to your most demanding projects. Designed with an all-aluminum, EMI-shielded case, solid steel gears and non-programmable digital circuitry, this powerhouse servo can tackle the most extreme 1/5th scale vehicle stunts and giant scale aerobatic maneuvers in addition to the industrial applications that inspired its original design. Capable of operating on 14.8 volts, the HS-1005SGT is the ultimate in power and durability.

• High Response Digital MOSFET Amplifier
• Hardened Steel Gears with MPD First Gear
• Long Life Potentiometer

Operating Voltage Range: 11.1V ~ 14.8V DC

Speed: 0.26 ~ 0.19 @ 60°

Maximum Torque Range: 1167 ~ 1528 oz-in (84 ~ 110 kg-cm)

Current Draw at Idle: 130 mA

No Load Operating Current Draw: 1,300 mA

Stall Current Draw: 6,500 mA

Dead Band Width: 2 µs

Dimensions: 2.52×1.30×2.87″ (64.0×33.0x73.0mm)

Weight: 12.80 oz (363.0g)

Circuit Type: Digital Amplifier with Mosfet Drive

Motor Type: 5 Poles Cored Carbon Brush

Gear Material: Steel

Bearing Type: Dual Ball Bearing

Output Shaft (type/Ømm): 15T / 8

Case Material: CNC Aluminum

Dust / Water Resistance: Splash Proof

Wire: 20awg/80 strand

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
