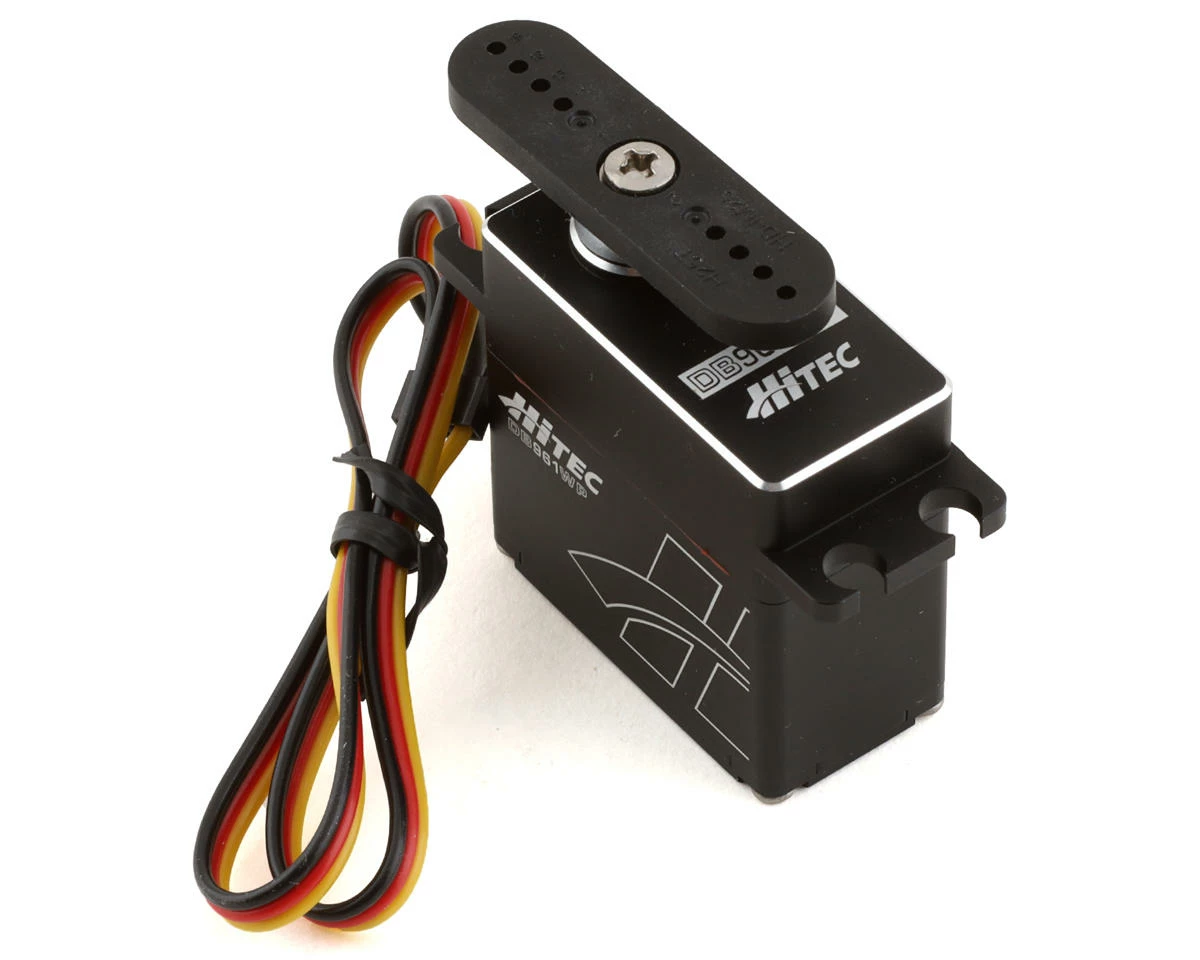

Hitec D961WP Ultra Torque Waterproof Brushless Servo (High Voltage)

Hitec D961WP Ultra Torque Waterproof Brushless High Voltage Servo. This ultra torque offering from Hitec uses huge brushless power to give it an impressive 55.0kg-cm (763.81oz-in) at 7.4V! All Hitec D-Series servos have been designed Hitec’s cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.

NOTE: Programmable features require the use of the Hitec servo programmer sold separately (HRC44427 or HRC44429).

Features:

• Full metal case
• IP67 Waterproof rating
• Robust gear train with dual ball bearings
• High performance brushless motor
• Programmable high response digital amplifier with MOSFET driver

Specifications:

• Operating Voltage: 6.0-7.4V
• Speed:
• @6.0V: 0.18sec/60°
• @7.4V: 0.15sec/60°
• Torque:
• @6.0V: 55.0kg-cm (763.81oz-in)
• @7.4V: 55.0kg-cm (763.81oz-in)
• Weight: 90.0g (3.17oz)
• Dimensions: 40x20x39mm (1.57×0.78×1.53in)
• Spline: 25T
• Motor Type: Brushless
• Water Resistance: IP67

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on January 12, 2023
