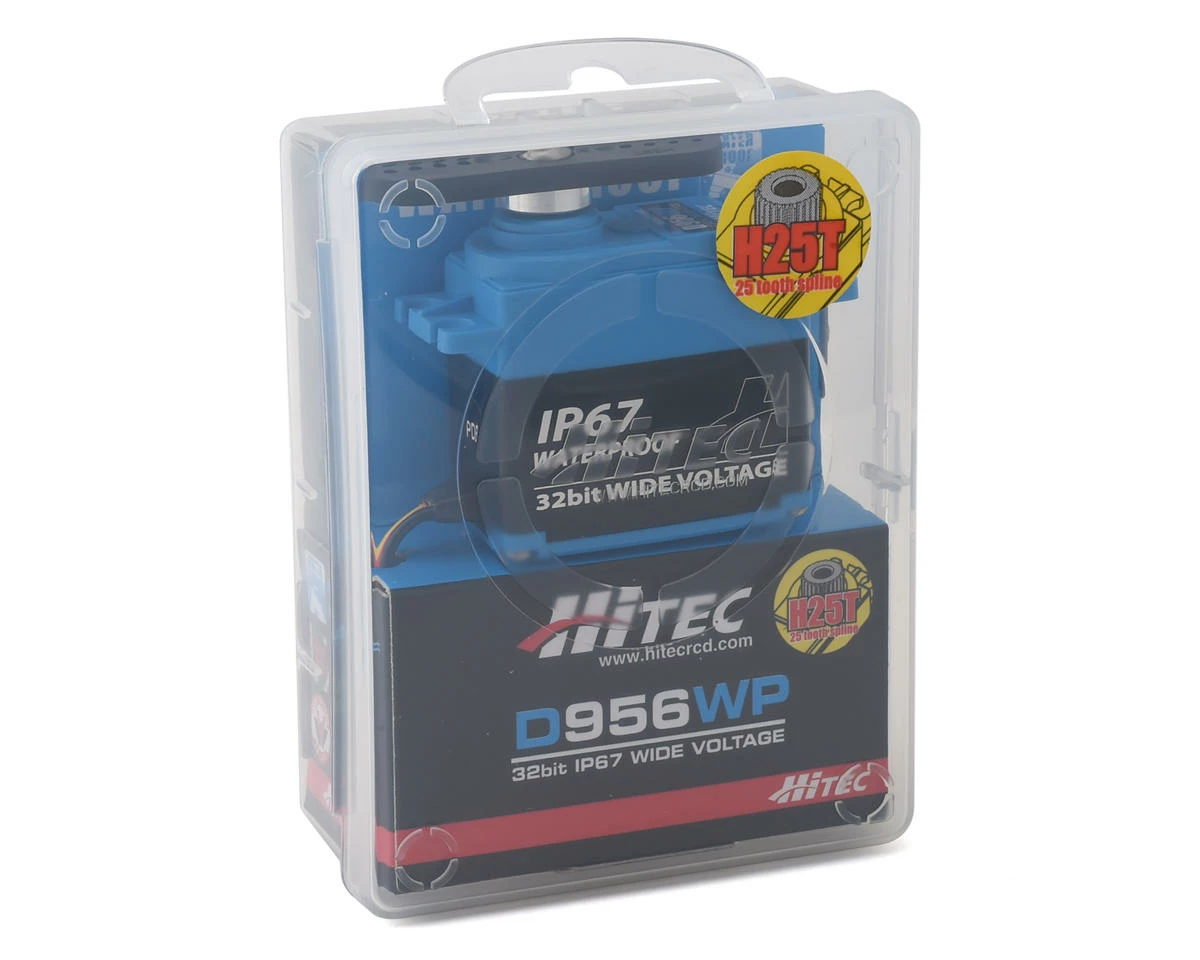

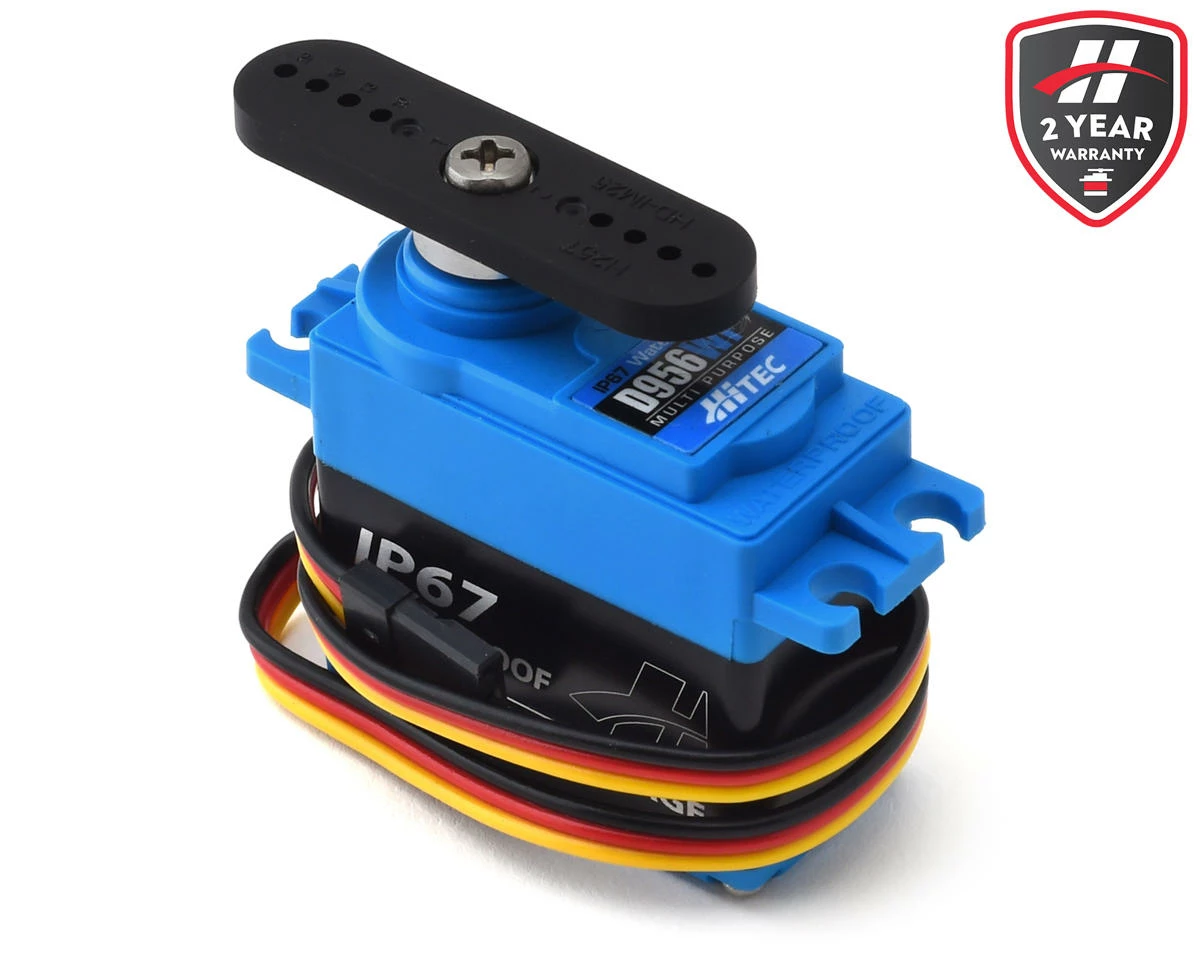

Hitec D956WP D-Series Waterproof Metal Gear Digital Servo (High Voltage)

The Hitec D956WP D-Series Waterproof Metal Gear Digital Servo is based off the D954SW servo. This IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Off-Road models. As with the entire “D” line, this technologically-advanced servo is powered by Hitec’s 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.



• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Water Resistant and Waterproof Proof Case

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Operating Voltage Range (Volts DC): 4.8V ~ 7.4V

Speed (Second @ 60°): 0.19 ~ 0.12

Maximum Torque Range oz. / in.: 251 ~ 405

Maximum Torque Range kg. / cm.: 18.0 ~ 29.0

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 500 mA

Stall Current Draw: 5,200 mA

Dead Band Width: 1 µs

Dimensions (Inches): 1.57 x 0.78 x 1.46

Dimensions (Metric): 40.0 x 20.0 x 37.0

Weight (Ounces): 2.40

Weight (Gram): 68.0

Circuit Type: 32bit Programmable Digital

Motor Type: Coreless Metal Brush

Gear Material: MK 1st Gear & 3 Steel Alloy Gears

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): H25T

Case Material: Plastic / Aluminum

Dust / Water Resistance: IP67 Rating

Connector Gauge (AWG) / Strand Count: 20 / 80

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
