Hitec D940TW D-Series Ultra Torque Titanium Gear Digital Servo (High-Voltage)
Original price was: $129.99.$90.99Current price is: $90.99.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.

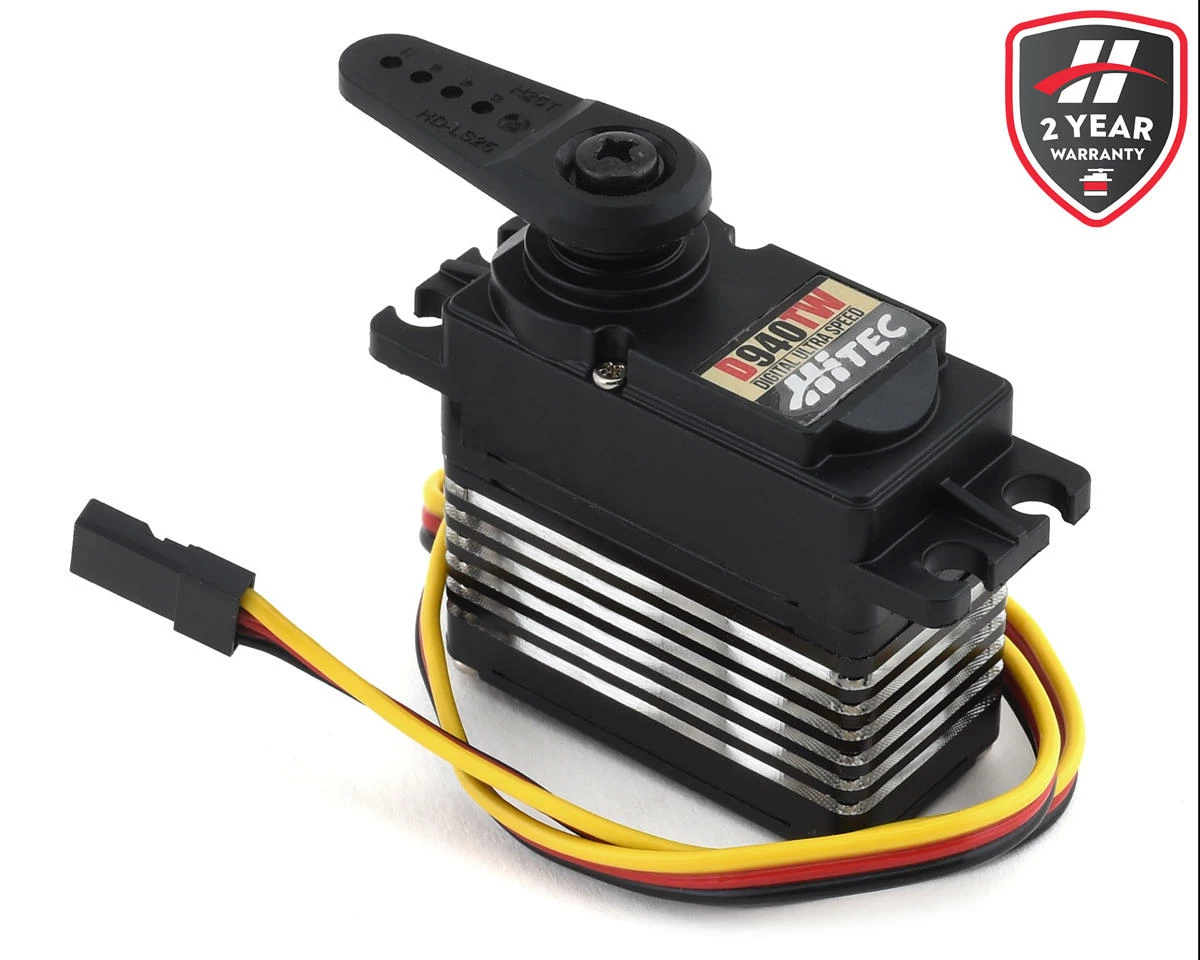

This is a Hitec D940TW Titanium Gear Servo, designed with industry leading high-resolution and state-of-the-art ultra-response technology. A 32-bit MCU and 12-bit ADC allow for unprecedented programmability and flexibility. The speedy, powerful line operates on a wide 4.8 – 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo delivers monster performance.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Specifications:
Size Category: Standard
Type: Digital
Torque: 139 oz-in @ 4.8v, 187 oz-in @ 6.0v, 229 oz-in @ 7.4v
Speed: 0.11 @ 4.8v, 0.07 @ 6.0v, 0.06 @ 7.4v
Dimensions (WxLxH): 1.57 x 0.79 x 1.50 in (39.9 x 20.1 x 38.1 mm)
Bushing Or Bearing: Bearing
Bearing: Dual
Gear Type: Metal
Gear Material: Titanium

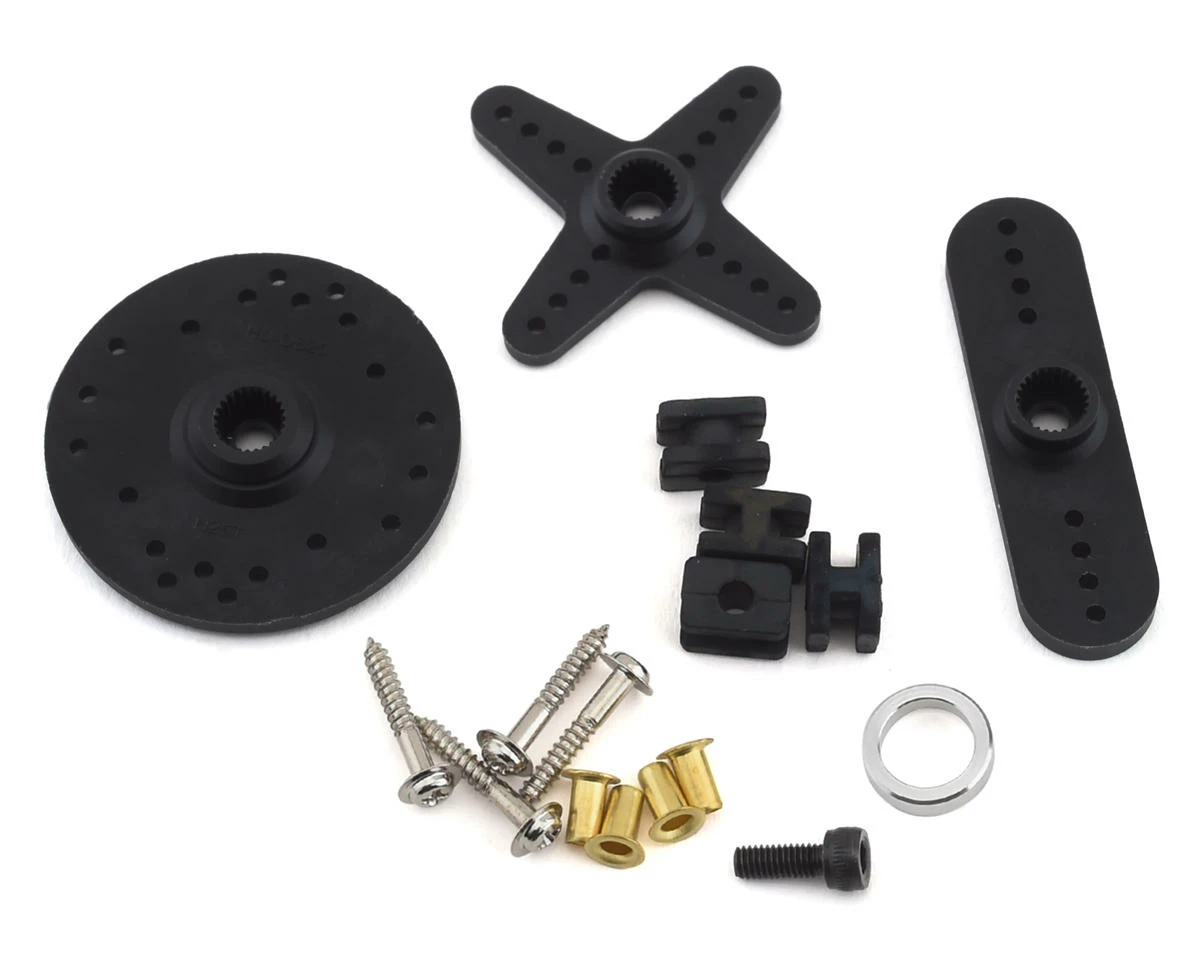

Includes:
- 3 Titanium/ Steel Gears Set
- Metal/ Karbonite 1st Gear Set
- Plastic/ Aluminum Case Set
- Applicable Horns
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
This product was added to our catalog on October 25, 2019
