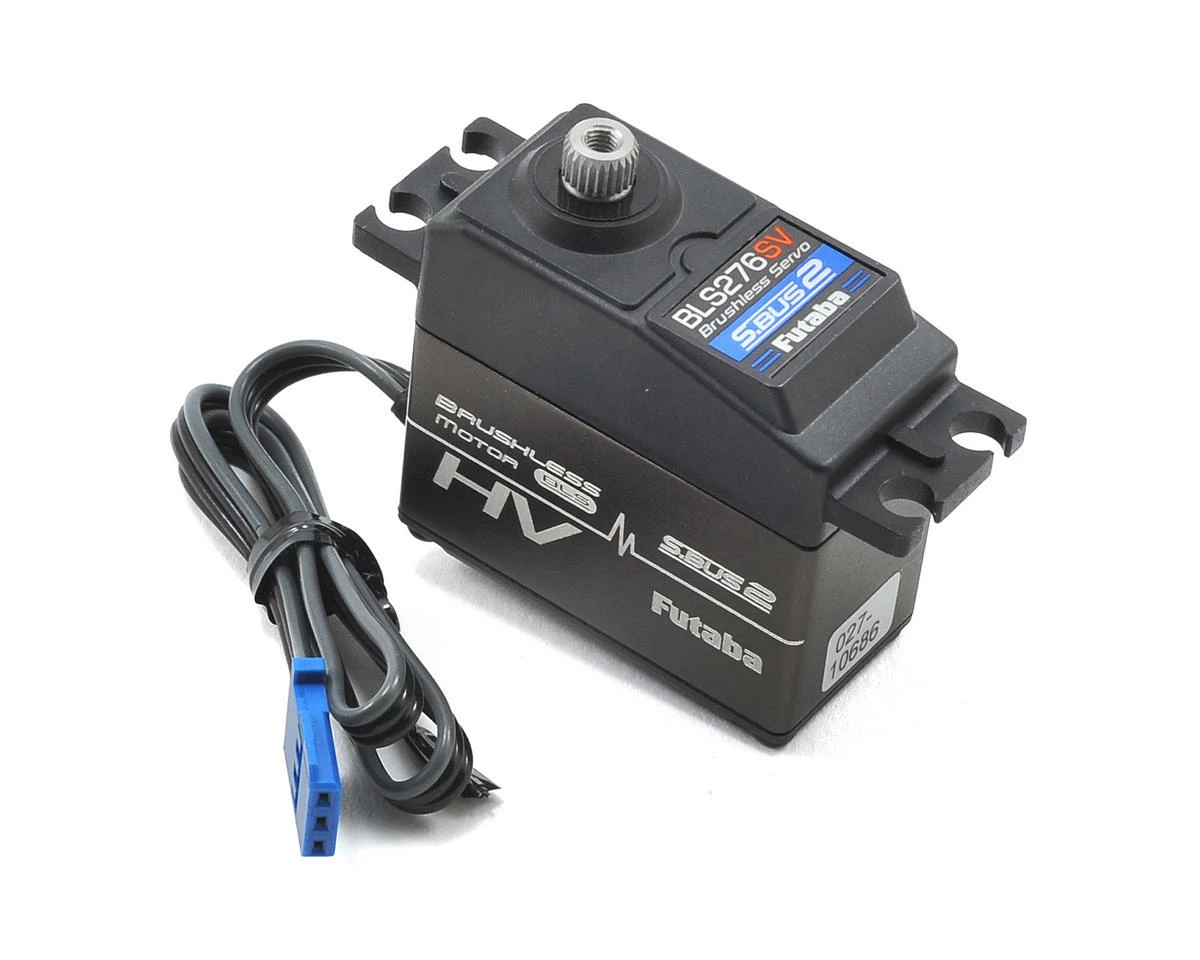

FUTABA BLS276SV Brushless S.Bus2 Programmable Digital Tail Servo (High Voltage)

The Futaba BLS276SV High Voltage Brushless S.Bus2 Helicopter Tail Servo must be used with a gyro that will support a 760?s neutral pulse width frequency.

Features:

• Compatible with gyros that will support a 760?s neutral pulse width frequency
• Brushless motor offers incredible holding power and 5X longer life than servos equipped with brushed motors
• SBUS 2 compatible
• Dual ball bearing supported output shaft
• One year limited warranty through Hobby Services beginning at date of purchase

Specifications:

• Neutral Pulse Width: 760us
• Speed:
• @6.0V: 0.055 sec/60°
• @7.4V: 0.050 sec/60°
• Torque:
• @6.0V: 61.12 oz/in (4.4 kg/cm)
• @7.4V: 69.45 oz/in (5.0 kg/cm)
• Dimensions: 1.57 x 0.79 x 1.45″ (40 x 20 x 36.8mm)
• Weight: 2.12oz (60g)
• Power Supply: 6.0-7.4V

NOTE: Do not connect this servo directly to a receiver. Always connect to a gyro.

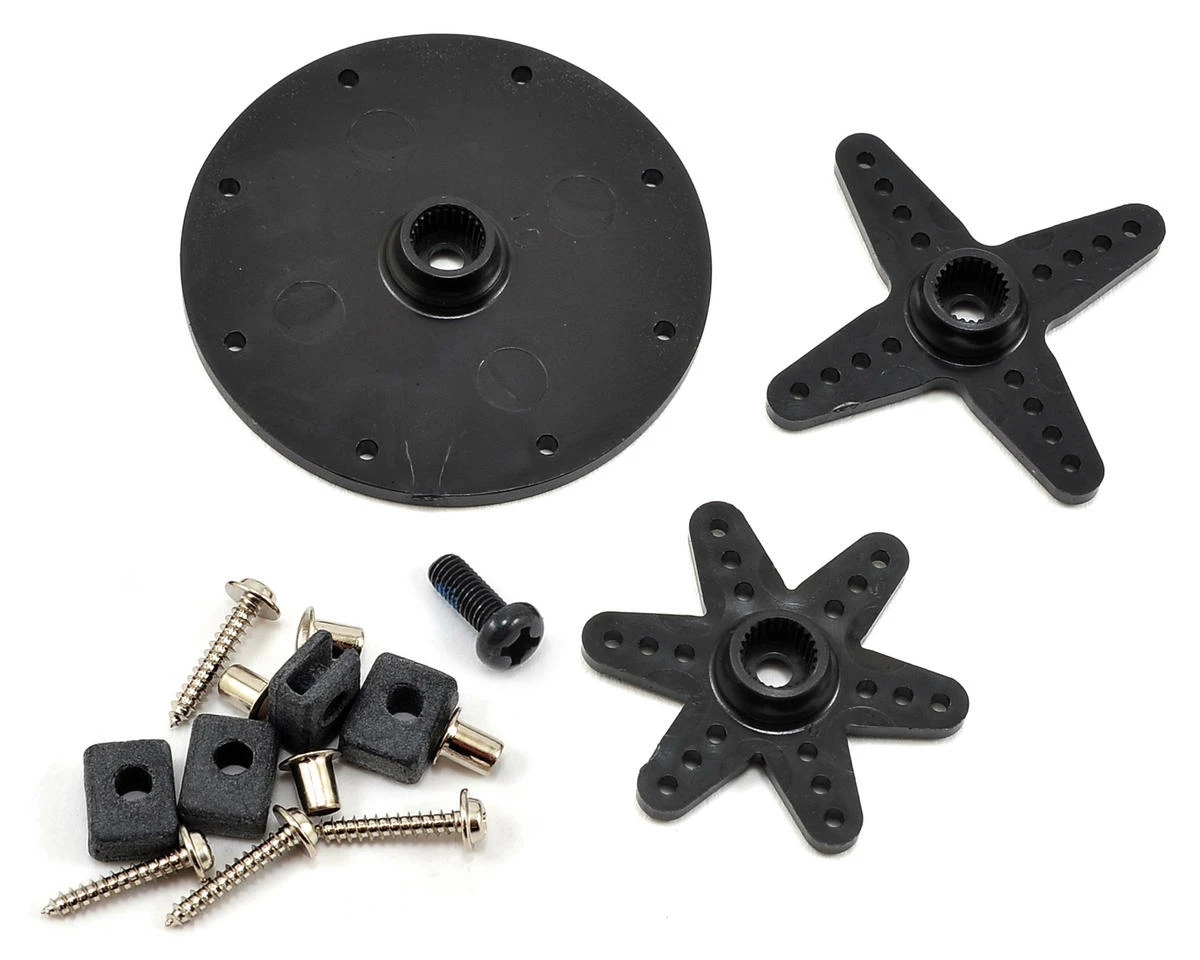

Includes:

• BLS276SV Servo
• 1.8″ (45mm) Round Horn,
• 1.5″ (39mm) four point Horn,
• 1.2″ (32mm) 6-point Horn,
• 3x8mm Servo Horn Screw,
• Four each
• Mounting Screws, Grommets, Eyelets, and Instructions

This product was added to our catalog on March 4, 2016
