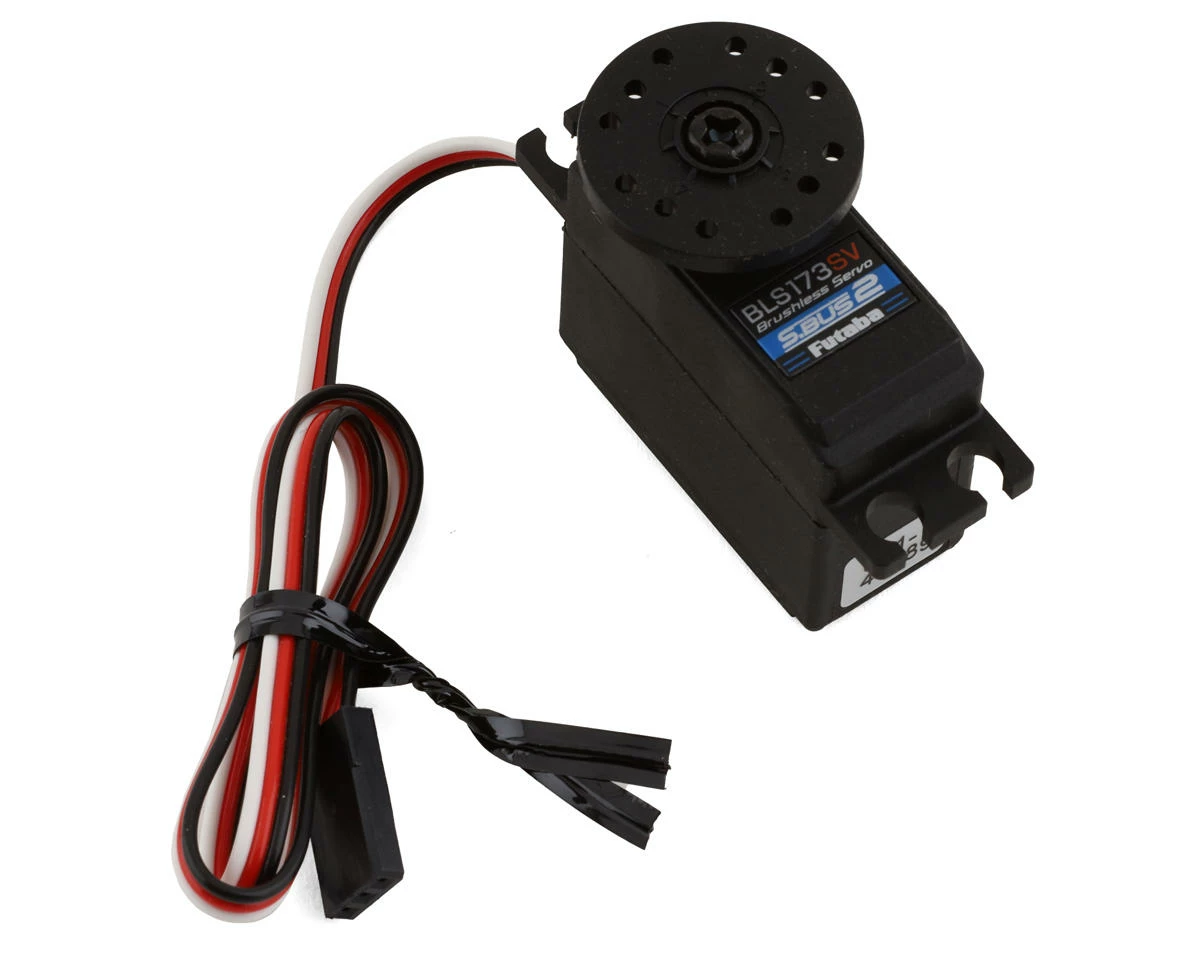

FUTABA BLS173SV S.Bus2 Brushless Mini Air HV Servo

This is the Futaba High Voltage BLS173SV S.Bus2 HV SX Mini Servo.

• Designed to be used with models requiring high speed and high torque
• Brushless motor offers incredible holding power and 5X longer life
• than servos equipped with brushed motors
• Programmable and compatible with S.Bus and S.Bus2
• One year limited warranty through the Futaba USA Service Center
• beginning at date of purchase

Torque: 105.6 oz-in (7.6 kg-cm) @ 7.4V

94.5 oz-in (6.8 kg-cm) @ 6.6V

Speed: 0.10 sec/60° @ 7.4V

0.11 sec/60° @ 6.6V

Dimensions: 1.30 x 0.59 x 1.07″ (33 x 15 x 27.1mm)

Weight: 0.99 oz (28 g)

Power Requirements: DC 6V to 7.4V

SBus Programmable Defaults

Dead Band Degree: 0.36

Damper Factor: 112

Stretcher Gain: 1

Boost: 5

Neutral Offset Degree: 0

Travel Adjust Percentage: 100%

Reverse (Normal/Reverse): Nor

Stop Mode (Free/Hold): Hold

Buzzer (On/Off): Off

Smoother (On/Off): On

Boost (On/Off): Off

Soft Start: 3.0

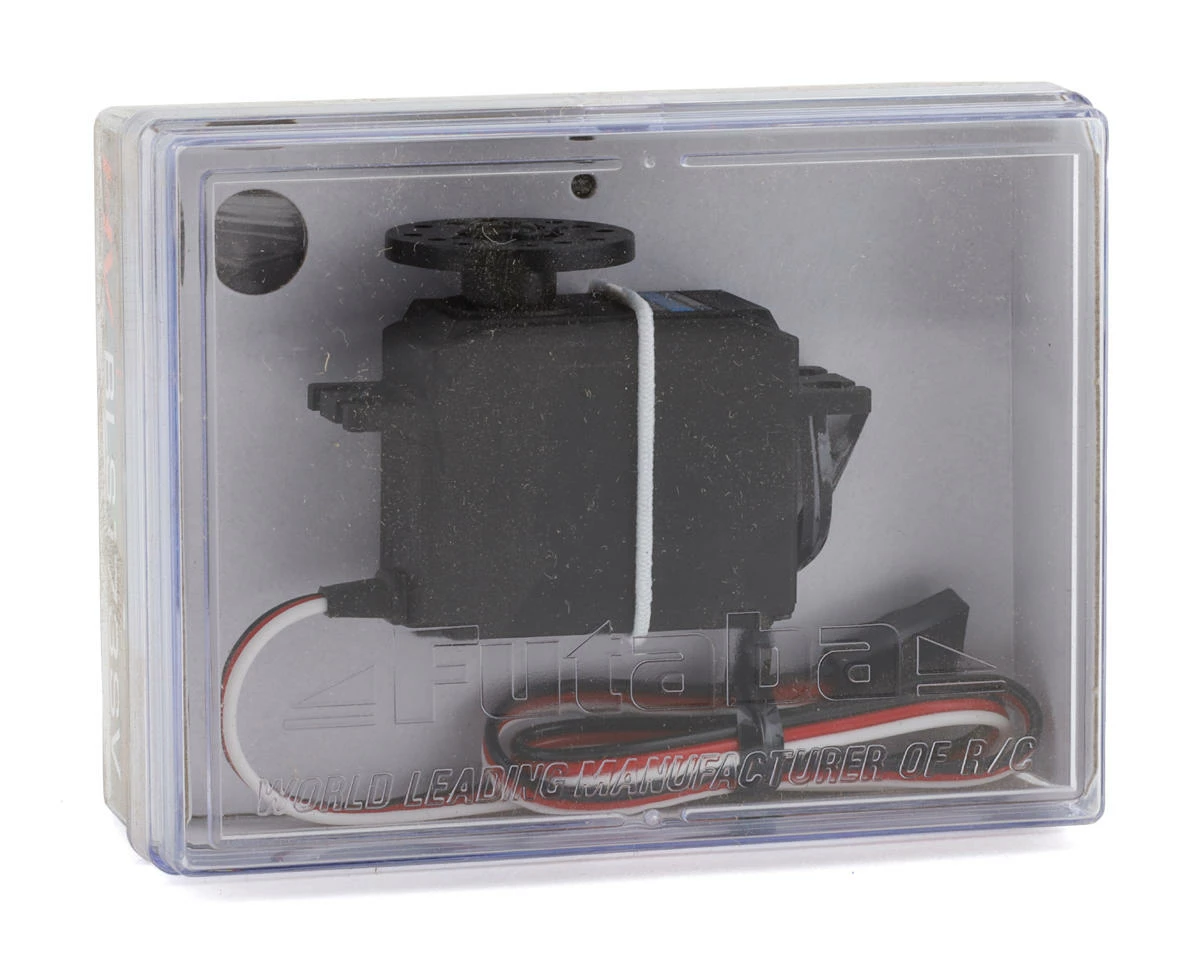

• (1) HV BLS173SV HS S.Bus2 Mini Servo with Instructions

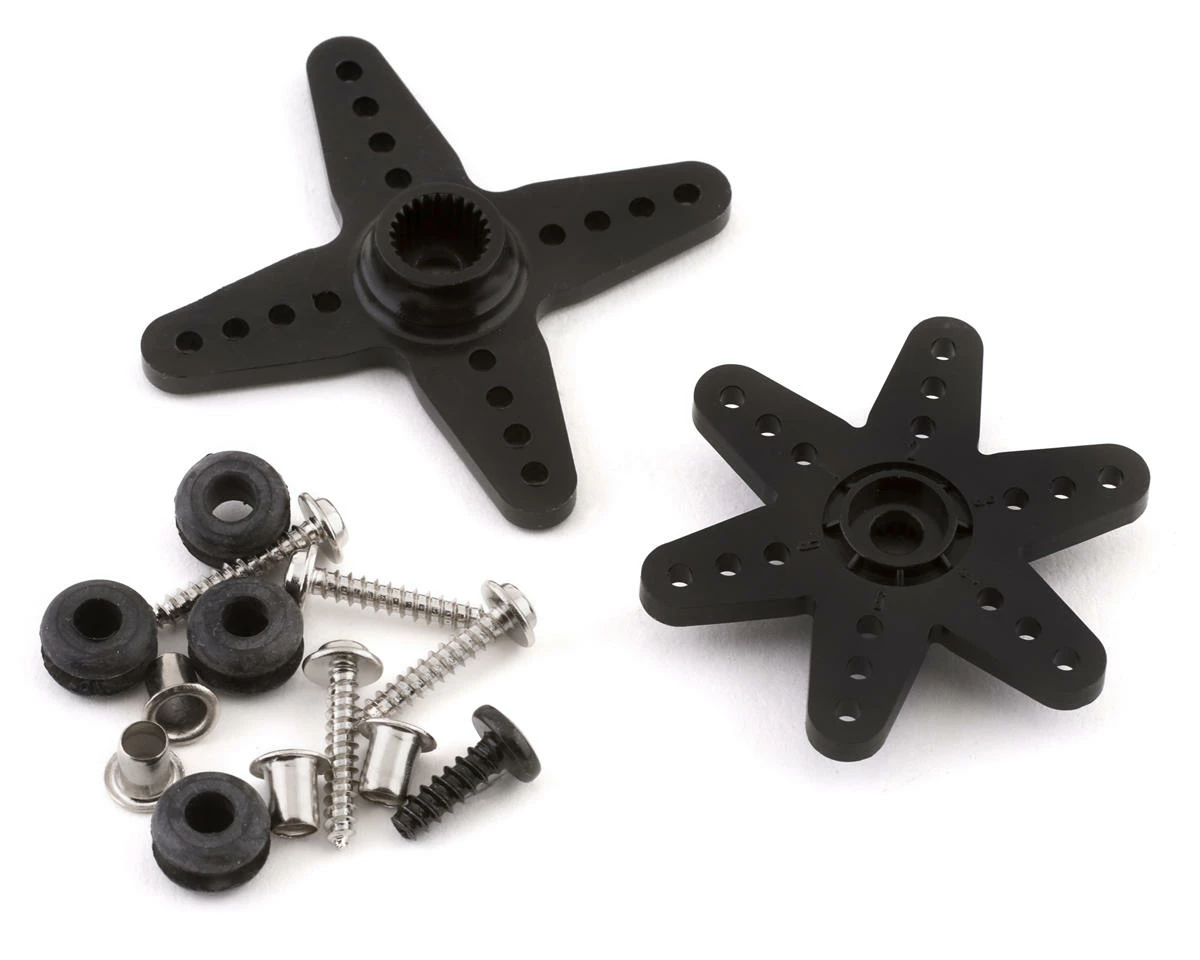

• (1) 0.83″ (21mm) Round Horn
• (1) 1.5″ (39mm) Four Point Horn
• (1) 1.2″ (32mm) Six Point Horn
• (4) Grommets
• (4) Eyelets
• (4) Mounting Screws
