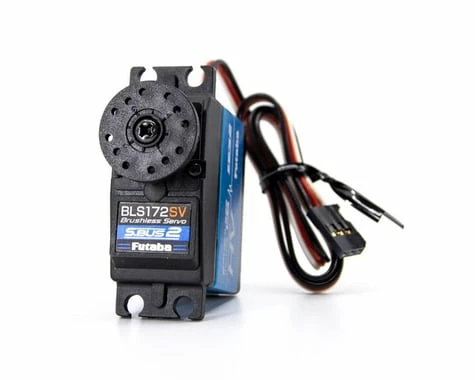

FUTABA BLS172SV Brushless S.Bus2 Ultra Torque Programmable Servo (High Voltage)

This is the Futaba BLS172SV Brushless S.Bus2 Ultra Torque Programmable Digital High Voltage Servo.

Features:

• Brushless motor offers incredible holding power and 5X longer life than servos equipped with brushed motors
• Ultra high torque
• Handles up to 2S LiPo power
• Programmable and compatible with S.Bus and S.Bus2
• Dual ball bearing supported output shaft
• Aluminum center case

Specifications:

• Torque:
• @6.6V: 472 oz-in (34 kg-cm)
• @7.4V: 514 oz-in (37 kg-cm)
• Speed:
• @6.6V: 0.12 sec/60°
• @7.4V: 0.11 sec/60°
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Operating Voltage: 6.6V ~ 7.4V Volts
• Pulse Width: 1520usec Neutral
• Operating Temperature Range: -20 to +60 Degree C
• Dimensions: 40.5x21x38.4mm (1.59×0.83×1.51″)
• Weight: 2.61 oz (74 g)

This product was added to our catalog on June 1, 2015
