EcoPower 100 Standard Ball Bearing Servo
Original price was: $13.99.$9.79Current price is: $9.79.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.

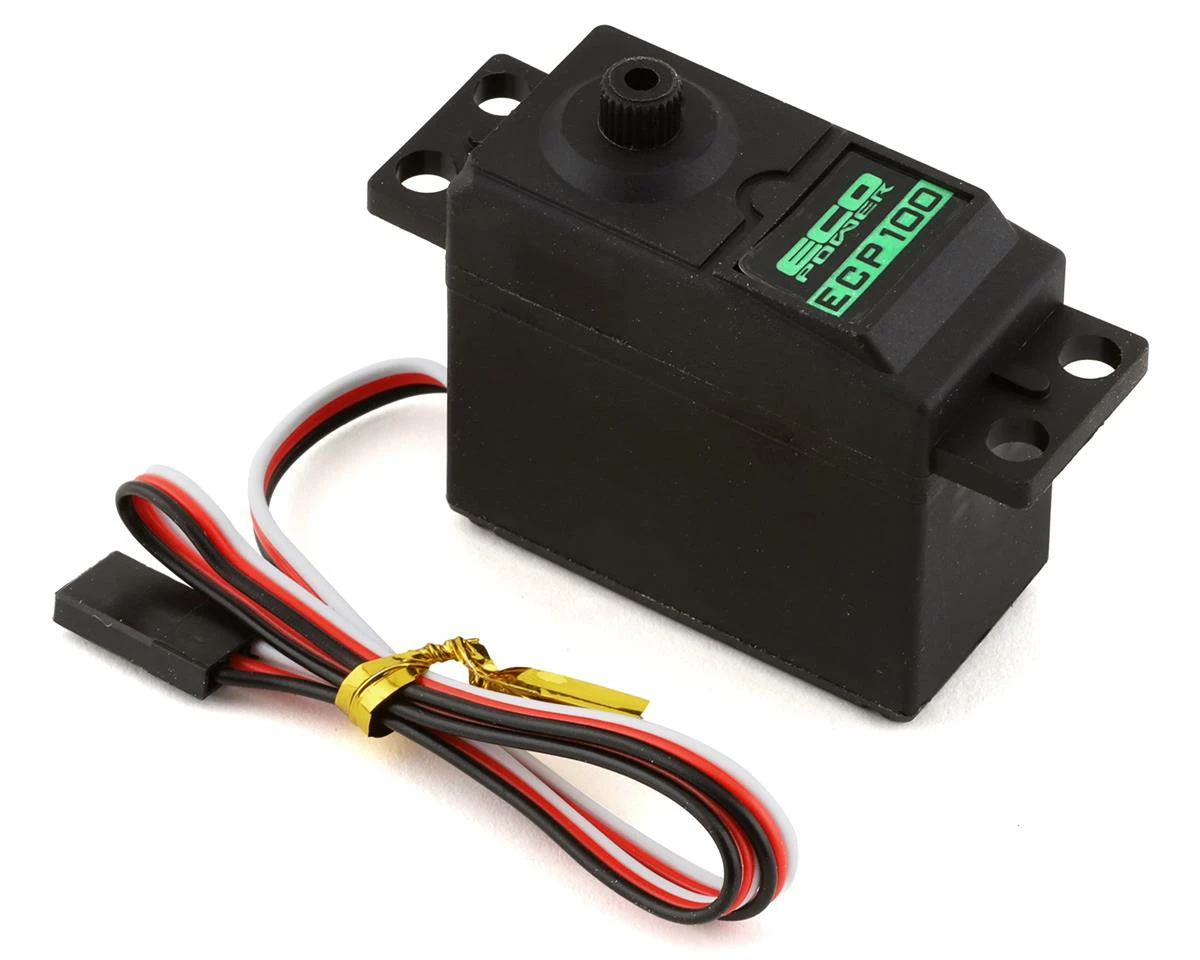

The EcoPower 100 Standard Ball Bearing Servo is an excellent option when you need an affordable, light duty replacement servo. The EcoPower 100 servo has been designed specifically for light duty 1/10 vehicles or RC airplanes equipped with standard size servos. The servo features smooth ball bearing control, durable nylon gears and a long 265mm servo lead. Package includes one servo, one servo mount set, five molded servo horns and hardware.
NOTE: This servo is not designed for use with fuel-powered surface or air use.
- Affordable option for light duty surface and air applications
- 89 oz-in of torque @ 6.0V, and .18 transit speed
- Digital circuitry
- Cored motor
- Durable nylon gears
- 265mm servo lead

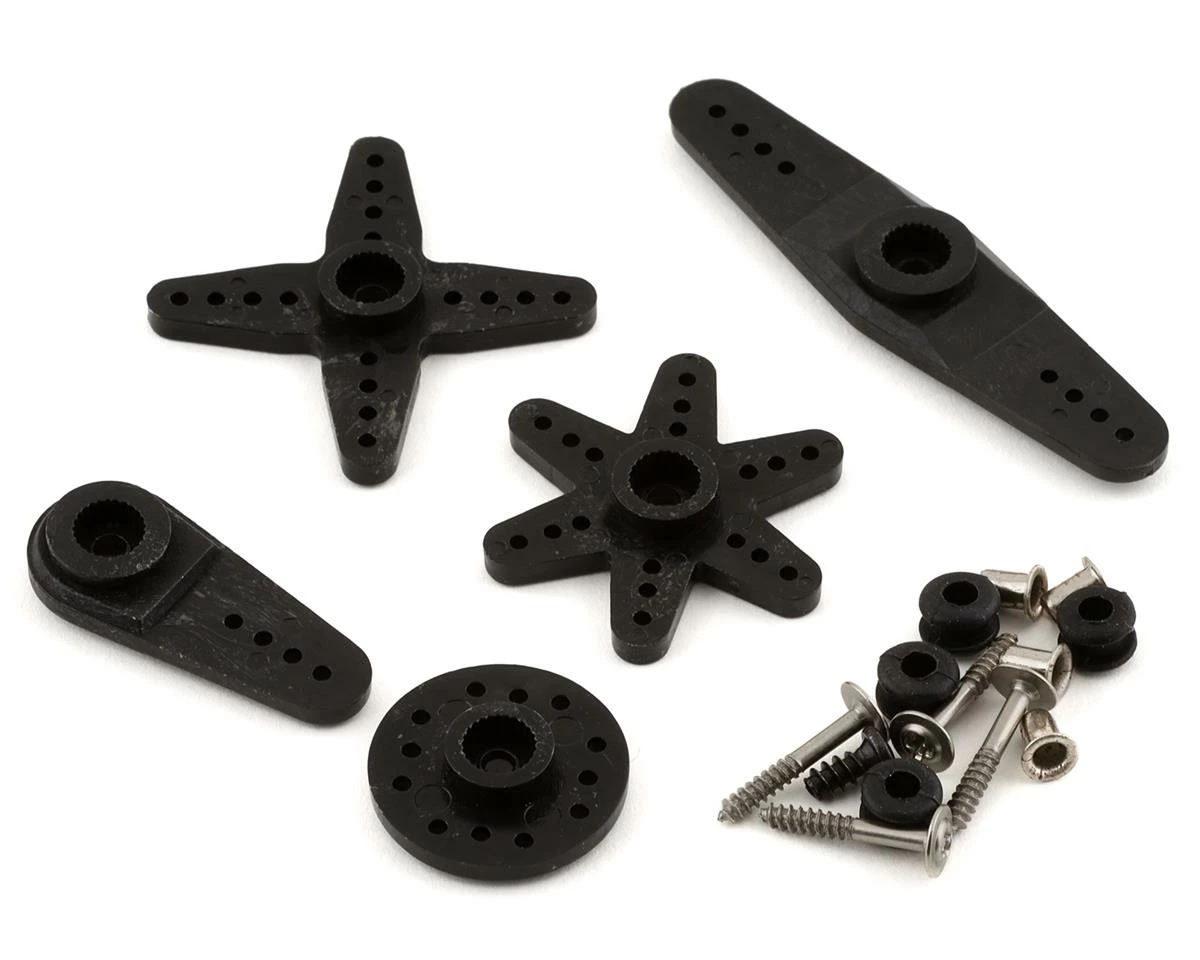

- Includes molded star, 4 way, dual, single and round arm type servo horns and mounting hardware
- 1 Year warranty against manufacturer defects*
| Servo Model |
100 |
| Recommended Application | Light Duty Surface & Air |
| Waterproof | No |
| Operating Voltage | 4.8V – 6.0V |
| Operating Speed @ 4.8V | 0.2/60° sec |
| Operating Speed @ 6.0V | 0.18/60° sec |
| Dynamic Torque @ 4.8V | 62 oz-in (4.4 kg-cm) |
| Dynamic Torque @ 6.0V | 89 oz-in (6.4 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25 Tooth |
| Gears | Nylon |
| Weight | 36g |
| Dimensions | 40.5x20x42.25mm (LxWxH) |
NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments, please watch the video below.
