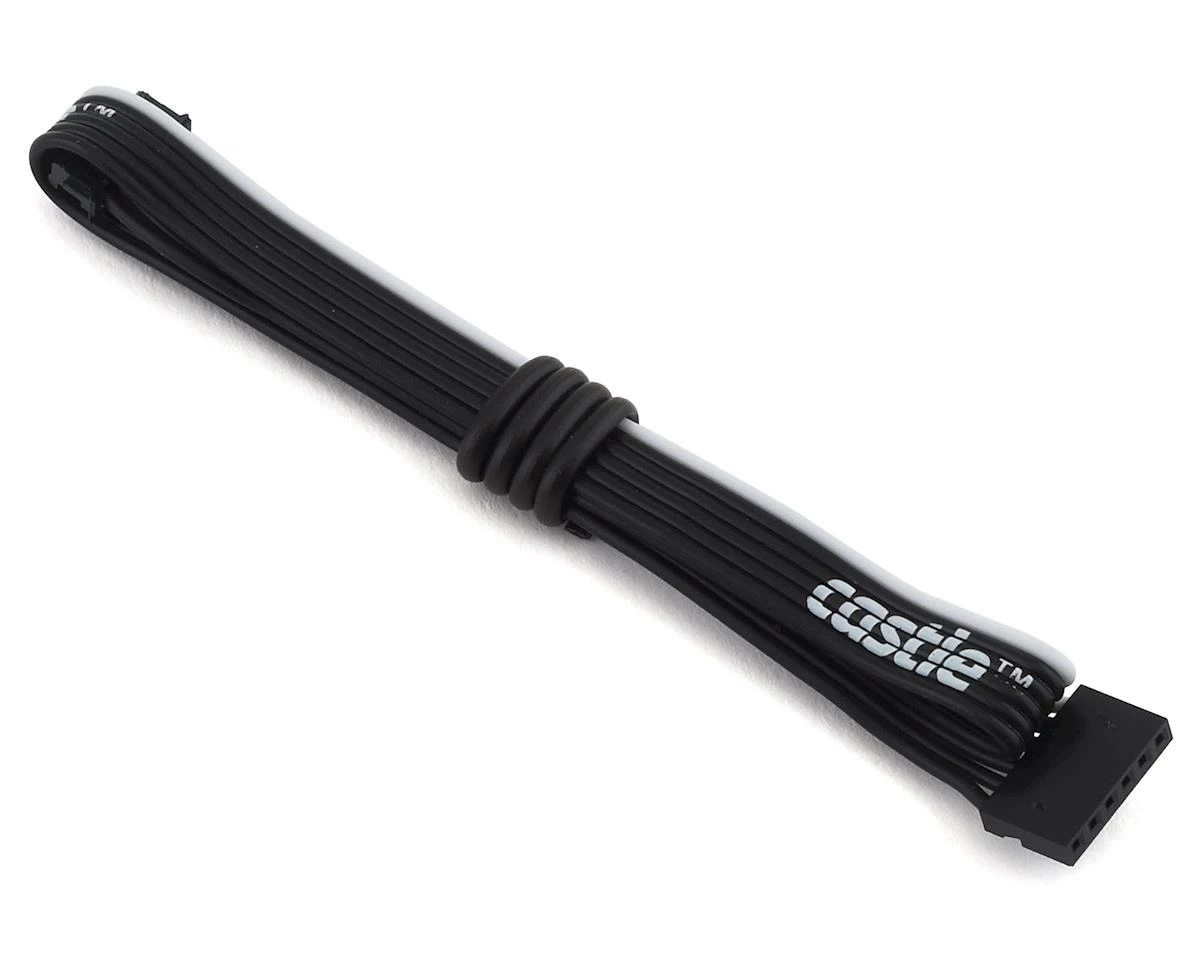

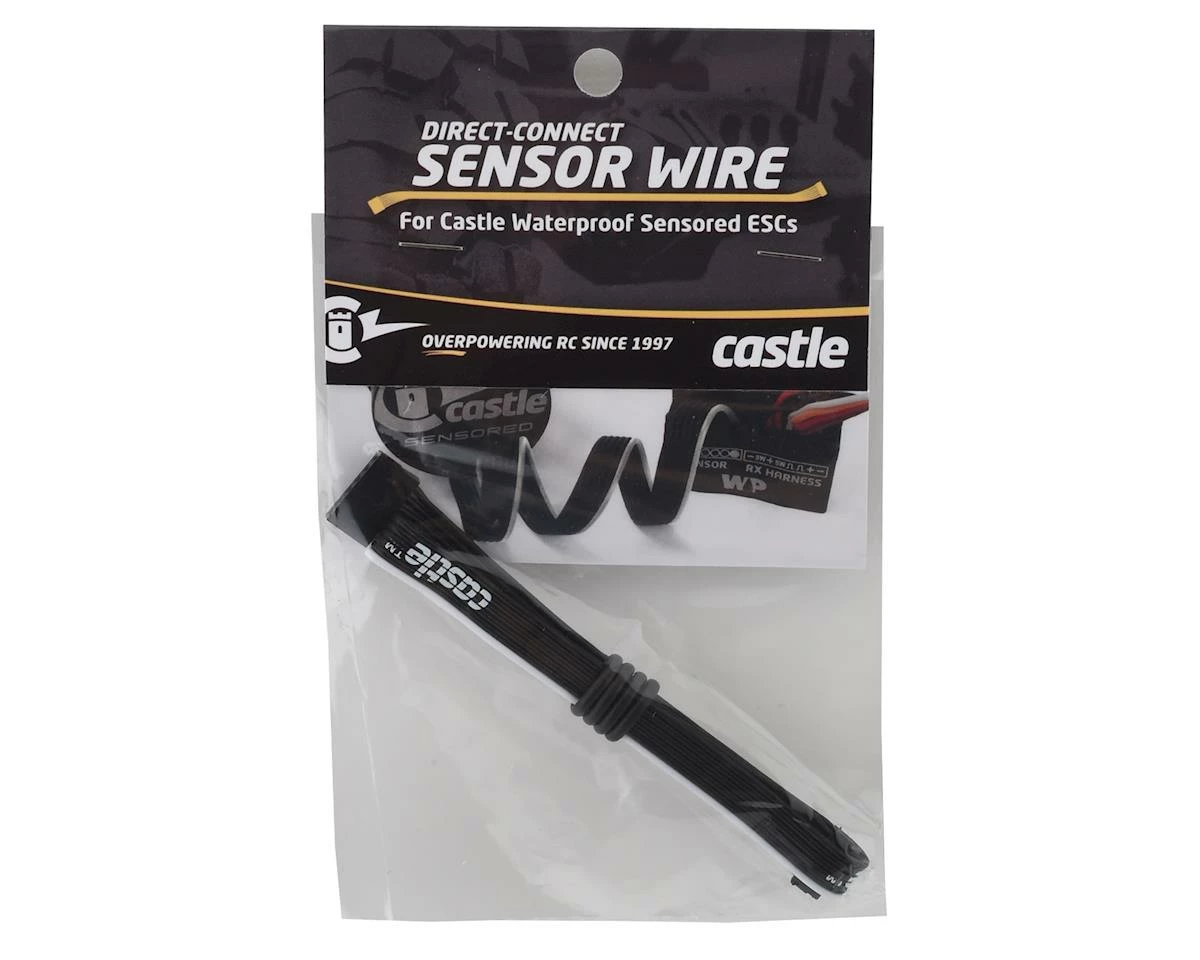

Castle Creations Direct Connect Sensor Wire (200mm)
Original price was: $9.95.$6.97Current price is: $6.97.
- Sustainable materials, for a better tomorrow.
- Your Security is Our Promise
- Safe Payments, Secure Personal Information
- The home of quality products.
The Castle Creations Direct-Connect Sensor Wire eliminates the need for the Castle sensor harness adapter. This eliminates a connection point and makes your installation cleaner. One end has the standard ROAR sensor plug that connects to the back of any sensored motor. The other end plugs directly into any Castle waterproof, sensored-capable ESC.
Compatible ESCs:
- Mamba Micro X
- Mamba Micro X2
- Mamba X
- Mamba Monster X
- Mamba Monster X 8s
- Mamba XLX2
- Copperhead 10
Installation:
- Mamba Micro X:
- Unplug existing sensor harness (or dust cover) from ESC.
- Plug in new direct connect sensor wire; mind the orientation by aligning the white wire to the corresponding white dot on the side of the ESC.
- Remove 2 screws beside capacitors, using 1.5mm hex.
- Remove wire harness retainer.
- Unplug existing sensor harness from ESC.
- Plug in new direct connect sensor wire; mind the orientation by aligning the white wire to the corresponding whit dot on the side of the ESC.
- Reinstall wire harness retainer and screws.
Available lengths:
- 200mm (7.9″)
- 250mm (9.8″)
- 300mm (11.8″)
This product was added to our catalog on September 29, 2020
